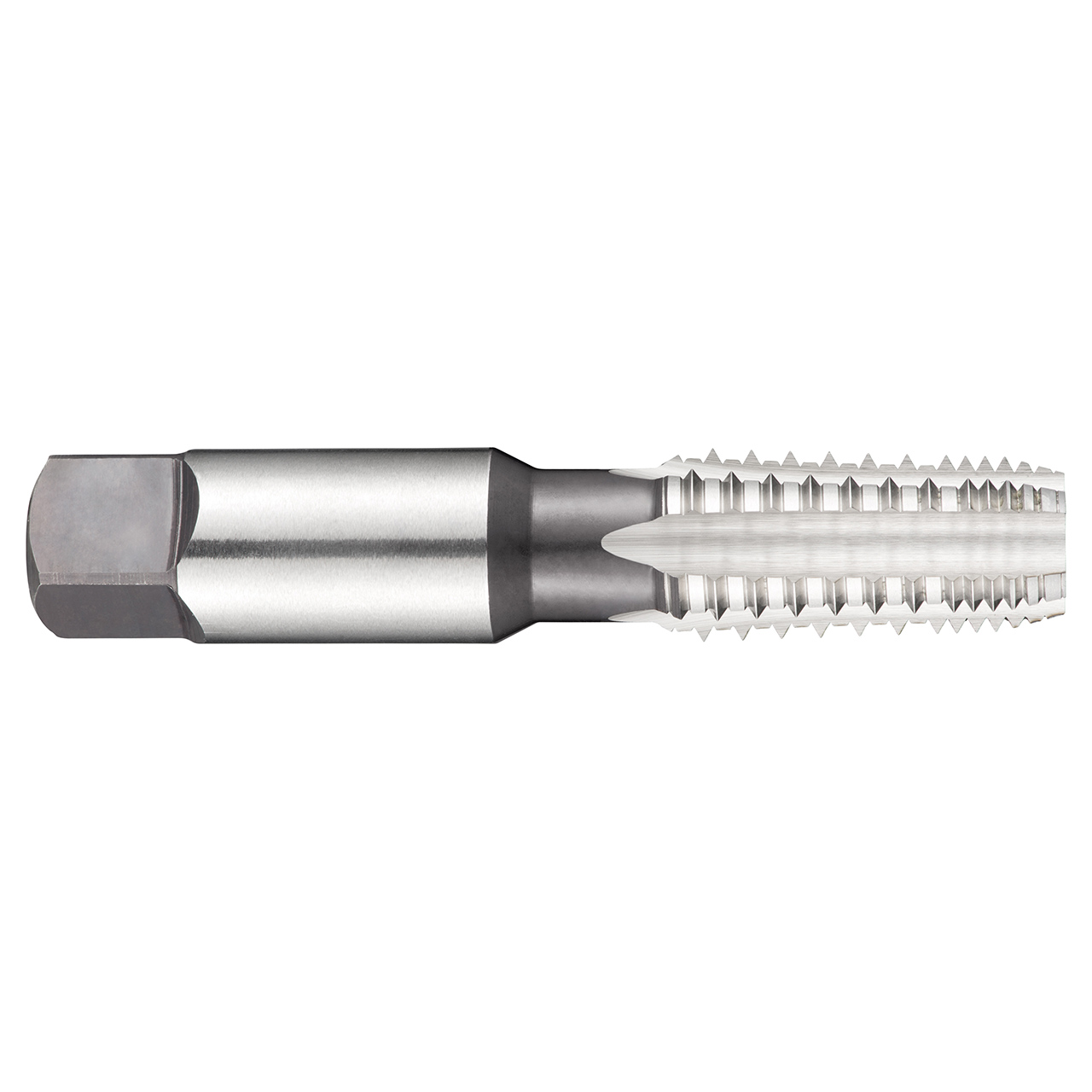

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for National Pipe Taper thread NPT 3/4" with 14 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 23.0mm shank and 17.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in alloy steel.
Product Specifications
| Connection Diameter (Inch) | 0.9055" |
| Overall Length (Inch) | 4.1339" |
| Clamping Width (mm) | 17.2mm |
| Thread Diameter (mm) | 26.67mm |
| No of Flutes | 5 |
| Clamping Length | 17 |
| Thread Diameter Size | 3/4 |
| Threading Length (mm) | 35mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | NPT-National taper pipe |
