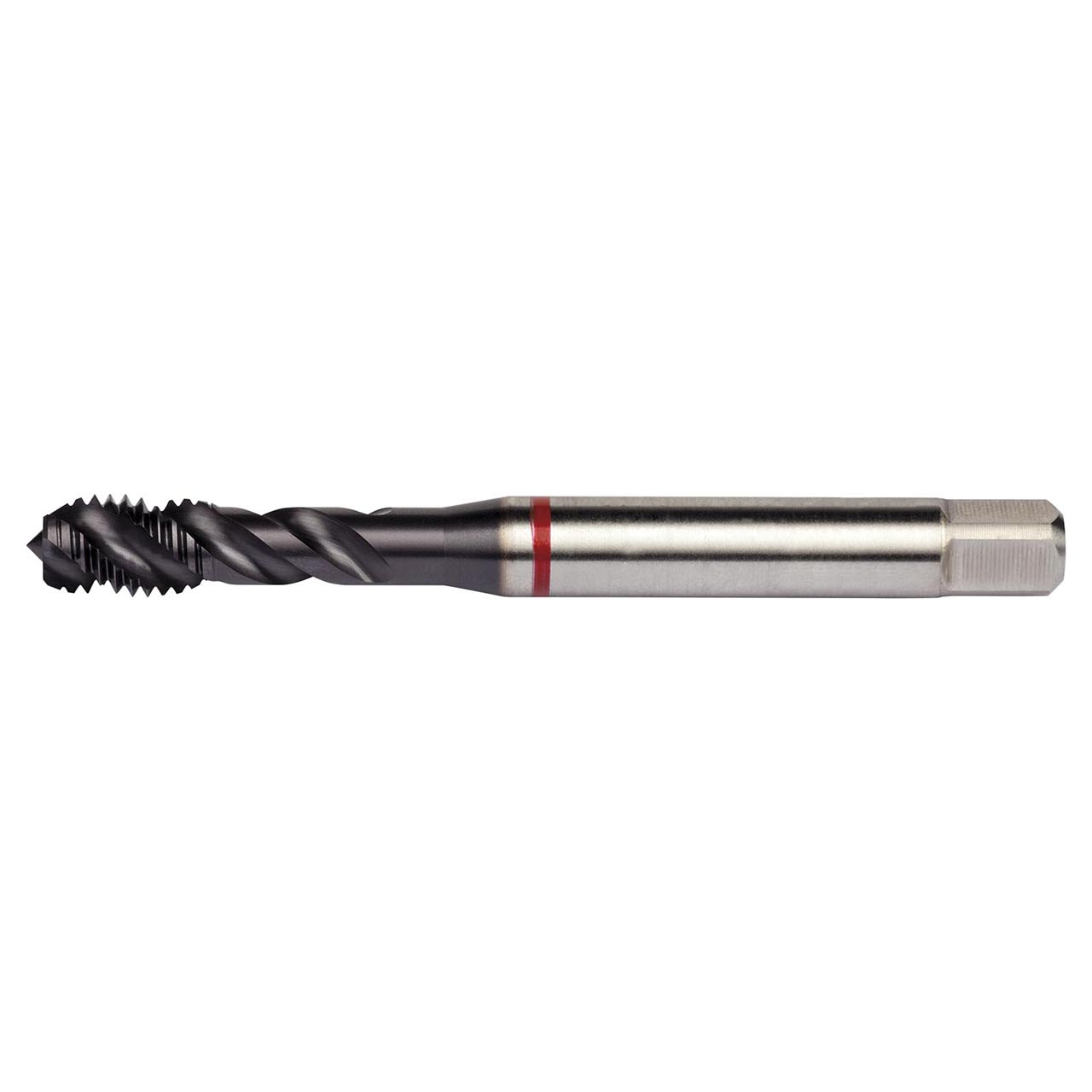

Dormer E766M8X1.0 | 0.318" Diameter x 3.5433" OAL 3 Flute TiAlN/Top Coated Spiral Flute Tap

$45.90
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026085
Weight:
1.13 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M8 with 1.00mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.318"
Overall Length (Inch)3.5433"
No of Flutes3
Flute Helix Angle45
Usable Length (mm)35mm
Thread Pitch (mm)1mm
Clamping Length10
Thread Diameter Size8
Threading Length (mm)13mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormMF-Metric fine
