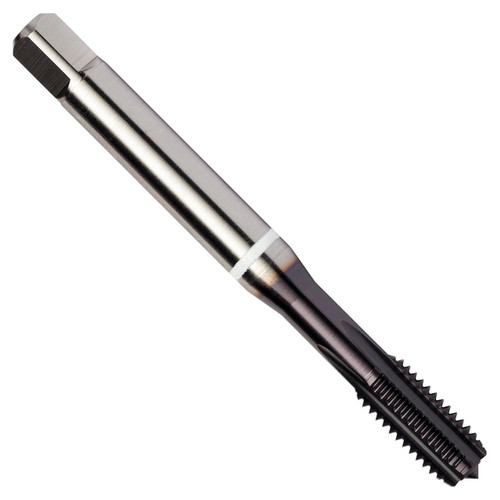

Dormer 7350261 | M10x1.25mm Thread Size x 9.68mm Shank x 20.00mm Length x 100.00mm OAL MF 6HX 4 Flute TiAlN/Top Coated HSS-E-PM E770 Straight Flute Tap

$73.90 $33.26
(You save $40.64)
Brand:
Dormer
Thread Limit:
6HX
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAlN/Top
Thread Direction:
Right Hand
Through Coolant:
No
Thread Standard:
DIN/ANSI
interval quantity:
1
SKU:
15025881
UPC:
7320760751053
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M10 with 1.25mm pitch and D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810" shank and 0.2840" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.381"
Overall Length (Inch)3.937"
No of Flutes4
Usable Length (mm)39mm
Thread Pitch (mm)1.25mm
Clamping Length11
Thread Diameter Size10
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleC 2-3
Surface ColorBlack - Deep Purple
Thread FormMF-Metric fine
Country of originIndia
