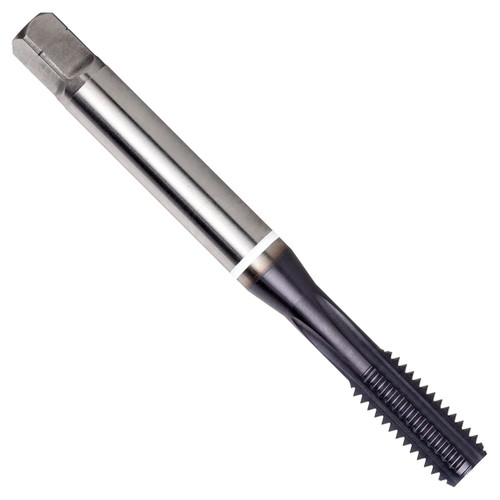

Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric Fine thread M12 with 1.25mm pitch and D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.367" |
| Overall Length (Inch) | 3.937" |
| No of Flutes | 4 |
| Thread Pitch (mm) | 1.25mm |
| Clamping Length | 11 |
| Thread Diameter Size | 12 |
| Threading Length (mm) | 21mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | E 1.5-2 |
| Surface Color | Black - Deep Purple |
| Thread Form | MF-Metric fine |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
