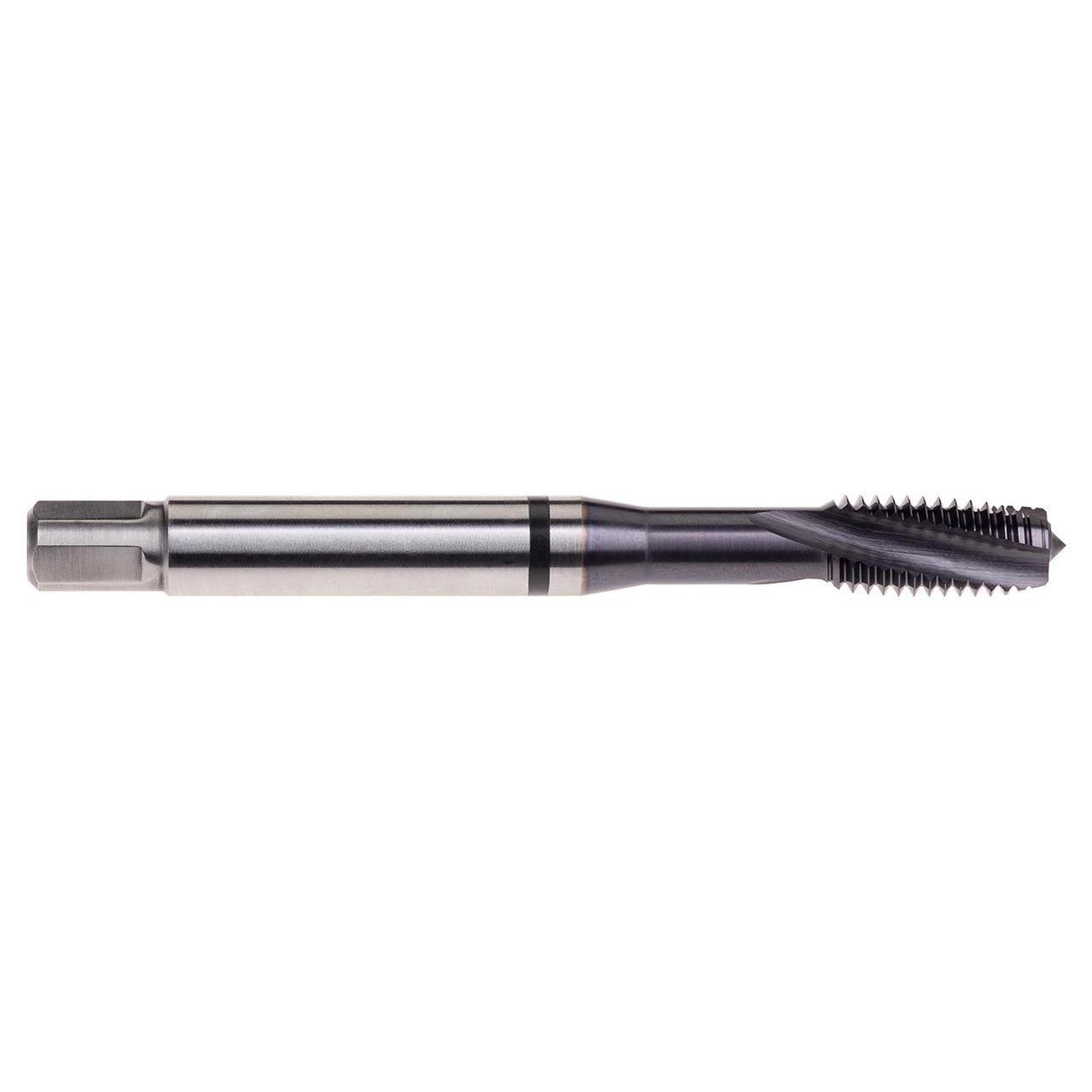

Designed for high performance through hole tapping in high strength and heat resistant workmaterials with hardness up to 45HRC. The TiAlN-Top coating combined with geometry that significantly increases cutting edge strength, provides excellent performance and consistency in hard and difficult to machine materials..
Product Specifications
| Connection Diameter (Inch) | 0.381" |
| Overall Length (Inch) | 3.937" |
| No of Flutes | 3 |
| Flute Helix Angle | 15 |
| Usable Length (Inch) | 1.535" |
| Thread Pitch (mm) | 18mm |
| Thread Diameter Size | 5/16 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2BX |
| Threading Length (Inch) | 0.906" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNC-Unified Coarse |
