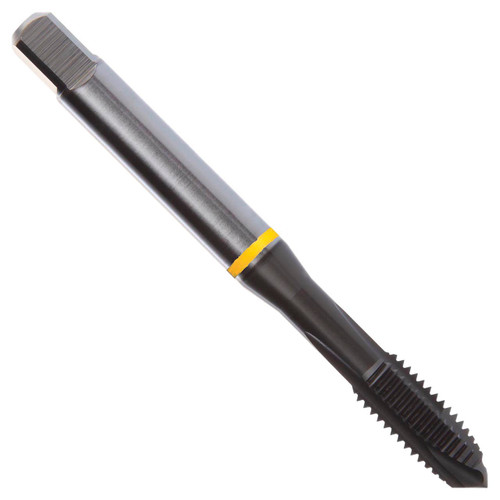

Dormer E8095/16 | 0.318" Diameter 3 Flute TiAlN/Top Coated Spiral Point Tap

$27.59
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026094
Weight:
1.16 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 5/16" with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys.


Product Specifications
Connection Diameter (Inch)0.318"
No of Flutes3
Usable Length (Inch)1.339"
Thread Diameter Size5/16
Material CodeHSS-E-PM
Thread Tolerance Class2B
Threading Length (Inch)0.709"
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormUNC-Unified Coarse
