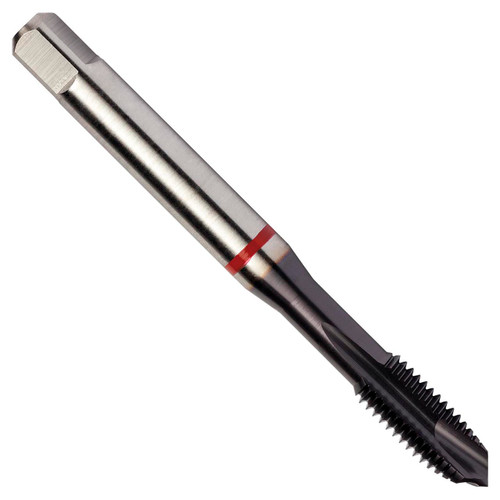

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 5/16" with 24 TPI and 2B class of fit with H4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.
Product Specifications
| Connection Diameter (Inch) | 0.318" |
| No of Flutes | 3 |
| Usable Length (Inch) | 1.339" |
| Thread Diameter Size | 5/16 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Threading Length (Inch) | 0.709" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
5/16"
Thread Limit:
2B
Number of Flutes:
3
Thread Standard:
DIN/ANSI
Finish/Coating:
TiAlN/Top
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
