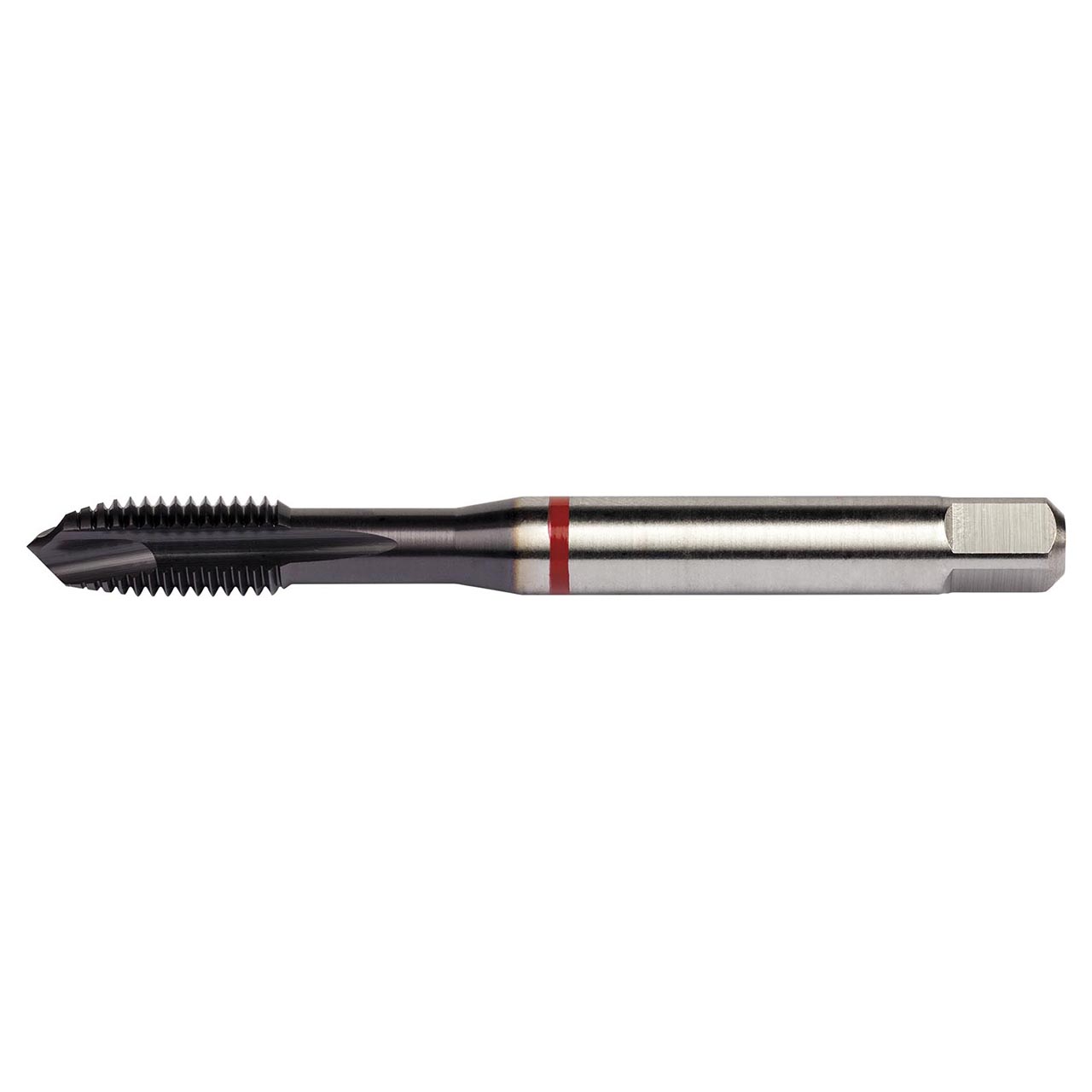

Dormer E8117/8 | 0.697" Diameter 4 Flute TiAlN/Top Coated Spiral Point Tap

$144.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15026022
Weight:
9.14 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 7/8" with 9 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970" shank and 0.5200" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.


Product Specifications
Connection Diameter (Inch)0.697"
No of Flutes4
Thread Diameter Size7/8
Material CodeHSS-E-PM
Thread Tolerance Class2B
Threading Length (Inch)1.339"
Cutting DirectionRight Hand
CoatingTiAlN/Top
Tap Chamfer StyleB 3.5-5
Surface ColorBlack - Deep Purple
Thread FormUNC-Unified Coarse
