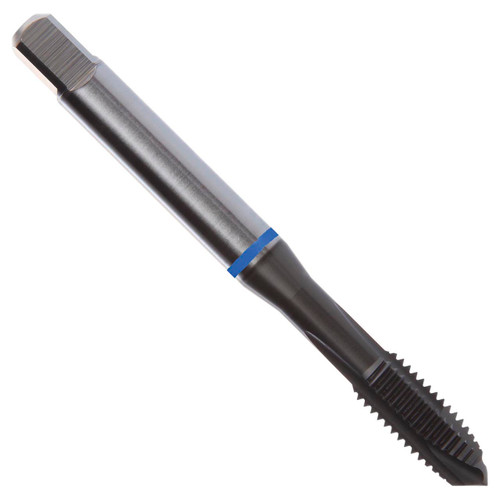

Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 1/2" with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel.
| Connection Diameter (Inch) | 0.367" |
| No of Flutes | 4 |
| Thread Diameter Size | 1/2 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B-3B |
| Threading Length (Inch) | 0.827" |
| Cutting Direction | Right Hand |
| Coating | SUPER-B |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | India |
