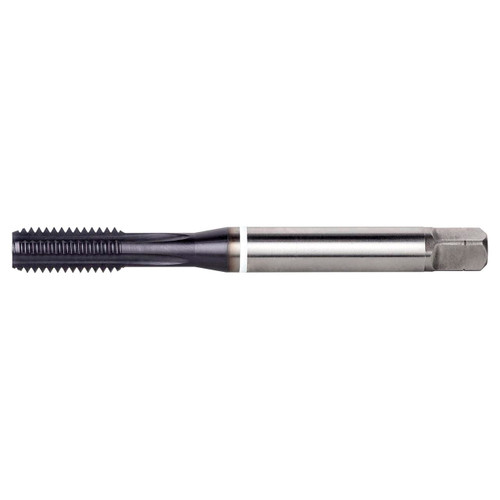

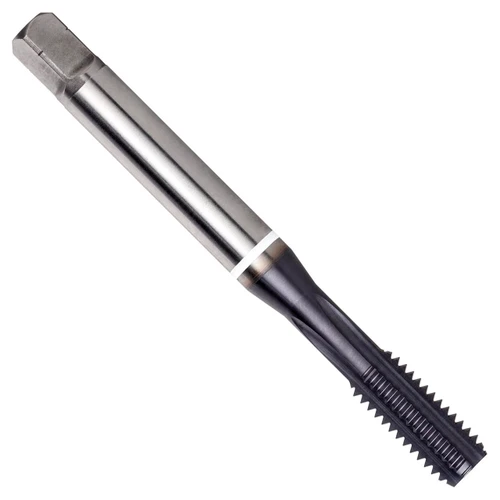

Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for Unified National Fine thread UNF 5/8" with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.
Product Specifications
| Connection Diameter (Inch) | 0.48" |
| No of Flutes | 4 |
| Thread Diameter Size | 5/8 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2BX |
| Threading Length (Inch) | 0.827" |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | E 1.5-2 |
| Surface Color | Black - Deep Purple |
| Thread Form | UNF-Unified Fine |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Size (Inch):
5/8"
Thread Limit:
2BX
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
TiAlN/Top
Thread Direction:
Right Hand
Through Coolant:
Yes
Thread Standard:
DIN/ANSI
