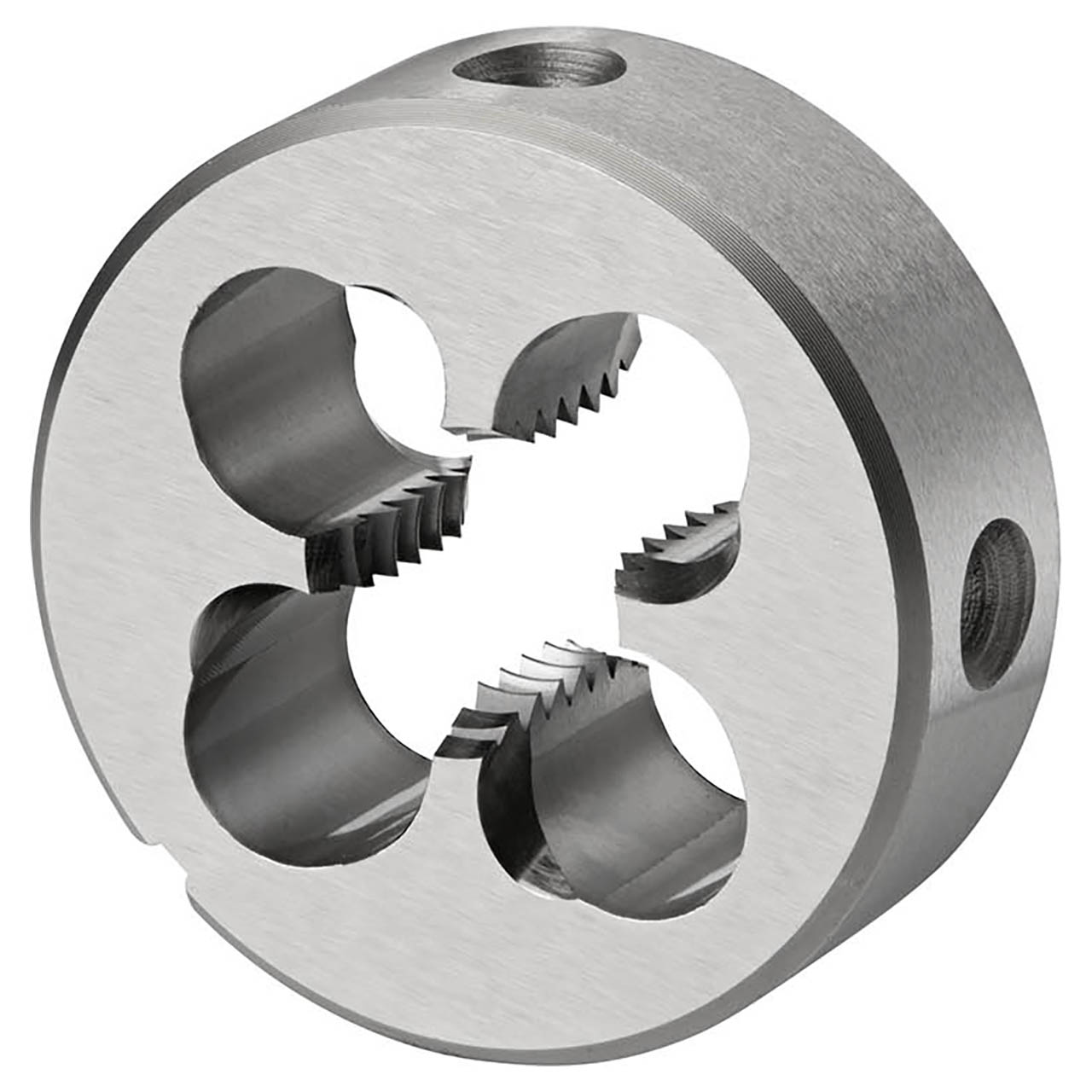

Dormer EP01M3DIN376 | 11.11mm Diameter x 0.4331" OAL Bright Coated Round Die

$66.69
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15021554
UPC:
7320760136126
Weight:
1.45 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Solid round die with a gun nose, for Unified National Coarse thread UNC 7/16" with 14 TPI and 2A class of fit, dimensions according to ISO 2568 standard with 30mm outside diameter and 11mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.


Product Specifications
Body Diameter (Inch)1.1811"
Overall Length (Inch)0.4331"
Thread Diameter (mm)11.11mm
Thread Diameter Size7/16
Material CodeHSS
Thread Tolerance Class2A
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
Thread FormUNC-Unified Coarse
