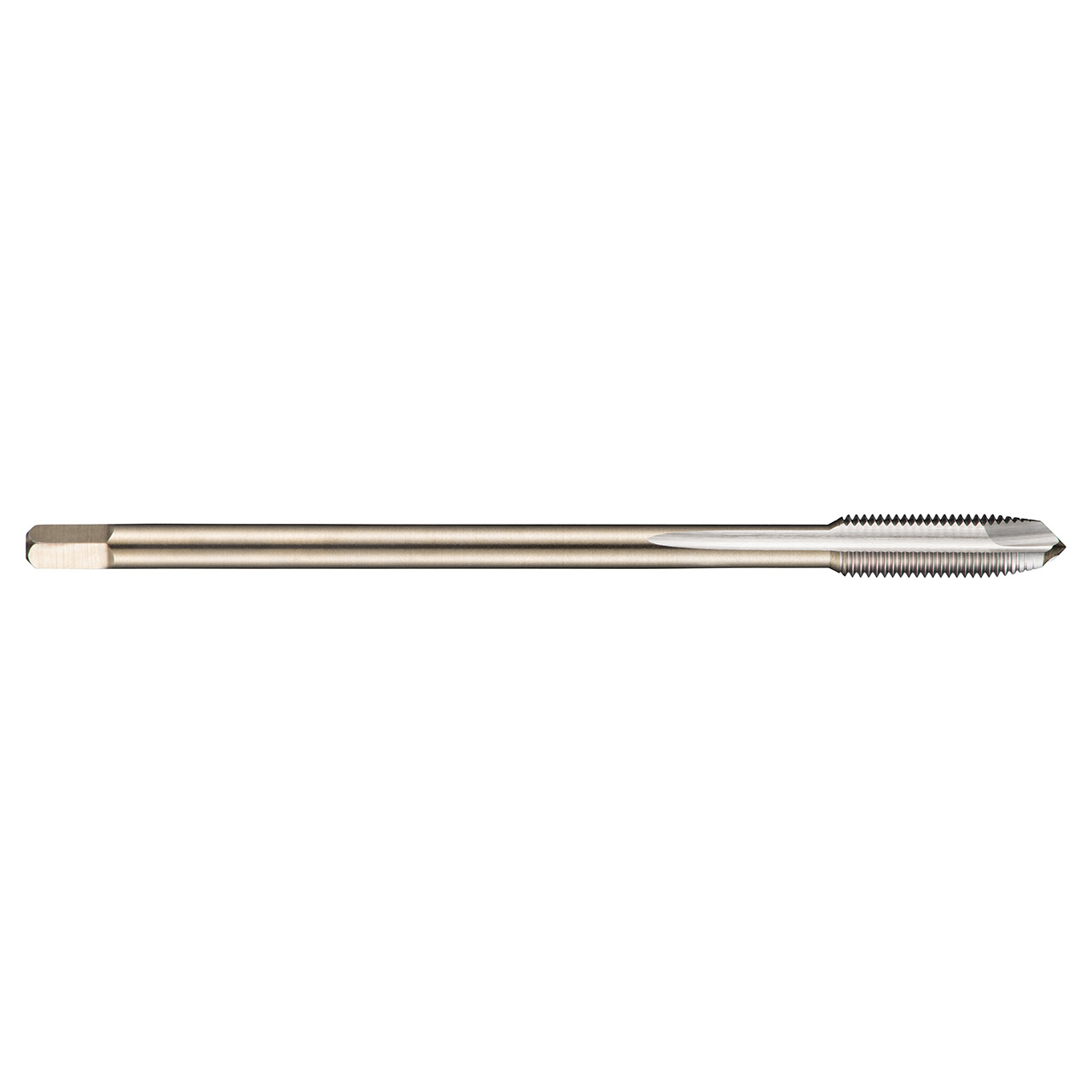

Dormer 5973478 | M16x1.50mm Thread Size x 12.00mm Shank x 21.00mm Length x 100.00mm OAL MF 6H 3 Flute Bright Coated HSS-E-PM EP10 Spiral Point Tap

$179.00 $80.55
(You save $98.45)
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
3
Thread Standard:
DIN 374
Finish/Coating:
Bright
Material:
HSS-E-PM
Through Coolant:
No
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
15023164
UPC:
7320760137499
Weight:
0.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M16 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.4724"
Overall Length (Inch)3.937"
Clamping Width (mm)9mm
No of Flutes3
Thread Pitch (mm)1.5mm
Clamping Length12
Thread Diameter Size16
Threading Length (mm)21mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleB 3.5-5
Surface ColorBright Silver
Thread FormMF-Metric fine
Country of originIndia
