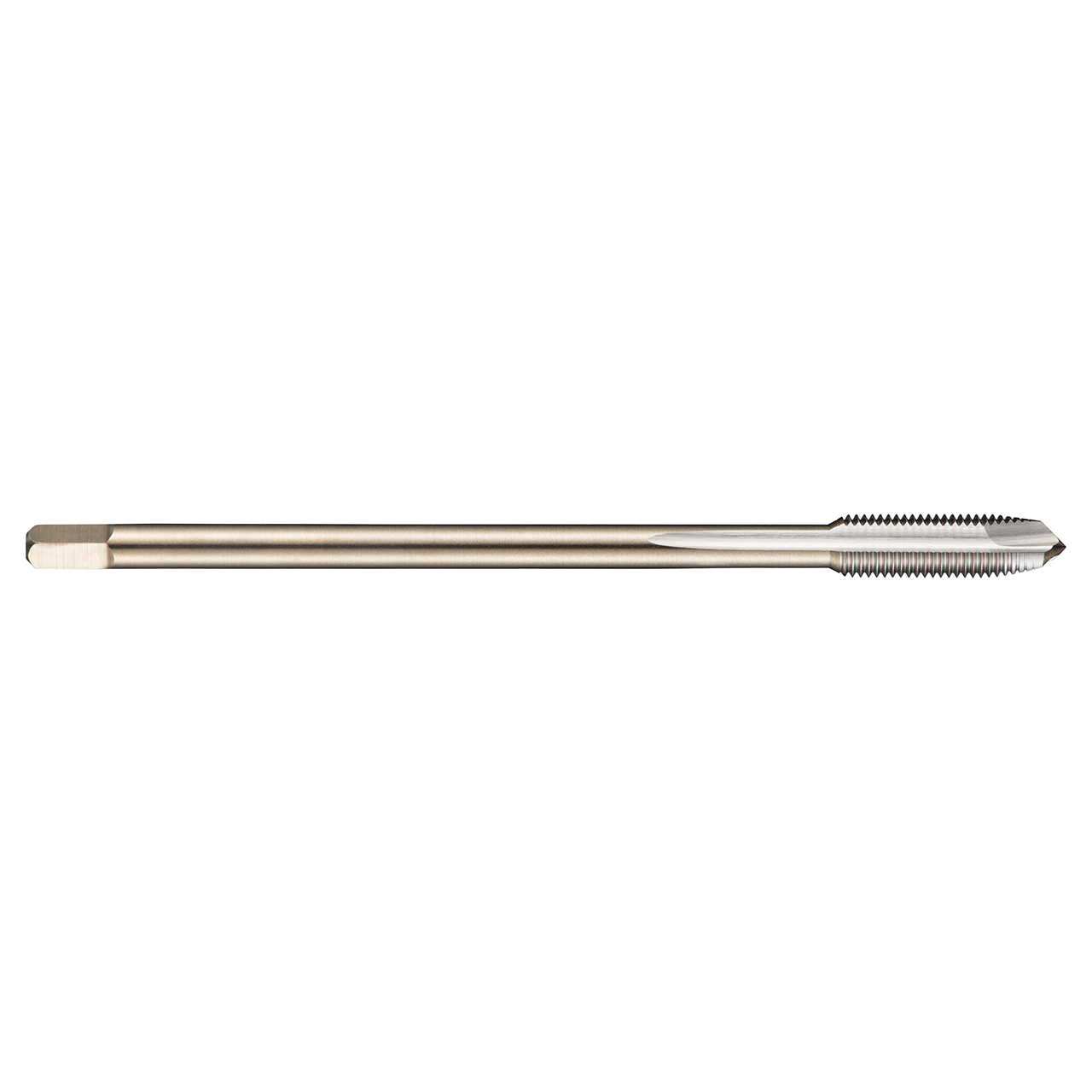

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M27 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 5.5118" |
| Clamping Width (mm) | 16mm |
| No of Flutes | 4 |
| Thread Pitch (mm) | 1.5mm |
| Clamping Length | 19 |
| Thread Diameter Size | 27 |
| Threading Length (mm) | 28mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Bright Silver |
| Thread Form | MF-Metric fine |
