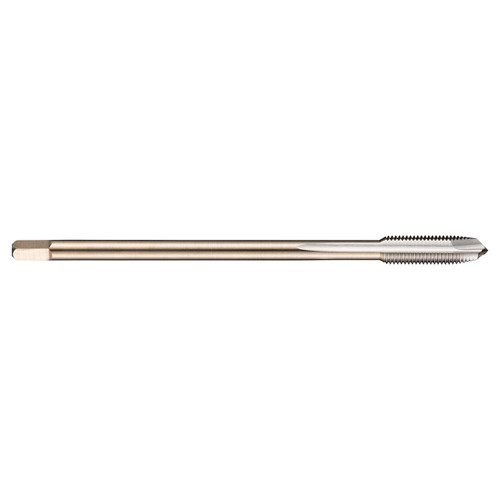

Dormer EP10M28X1.5 | 0.7874" Diameter x 5.5118" OAL 4 Flute Bright Coated Spiral Point Tap

$279.45
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023176
UPC:
7320760137611
Weight:
13.40 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M28 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.7874"
Overall Length (Inch)5.5118"
Clamping Width (mm)16mm
No of Flutes4
Thread Pitch (mm)1.5mm
Clamping Length19
Thread Diameter Size28
Threading Length (mm)28mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleB 3.5-5
Surface ColorBright Silver
Thread FormMF-Metric fine
