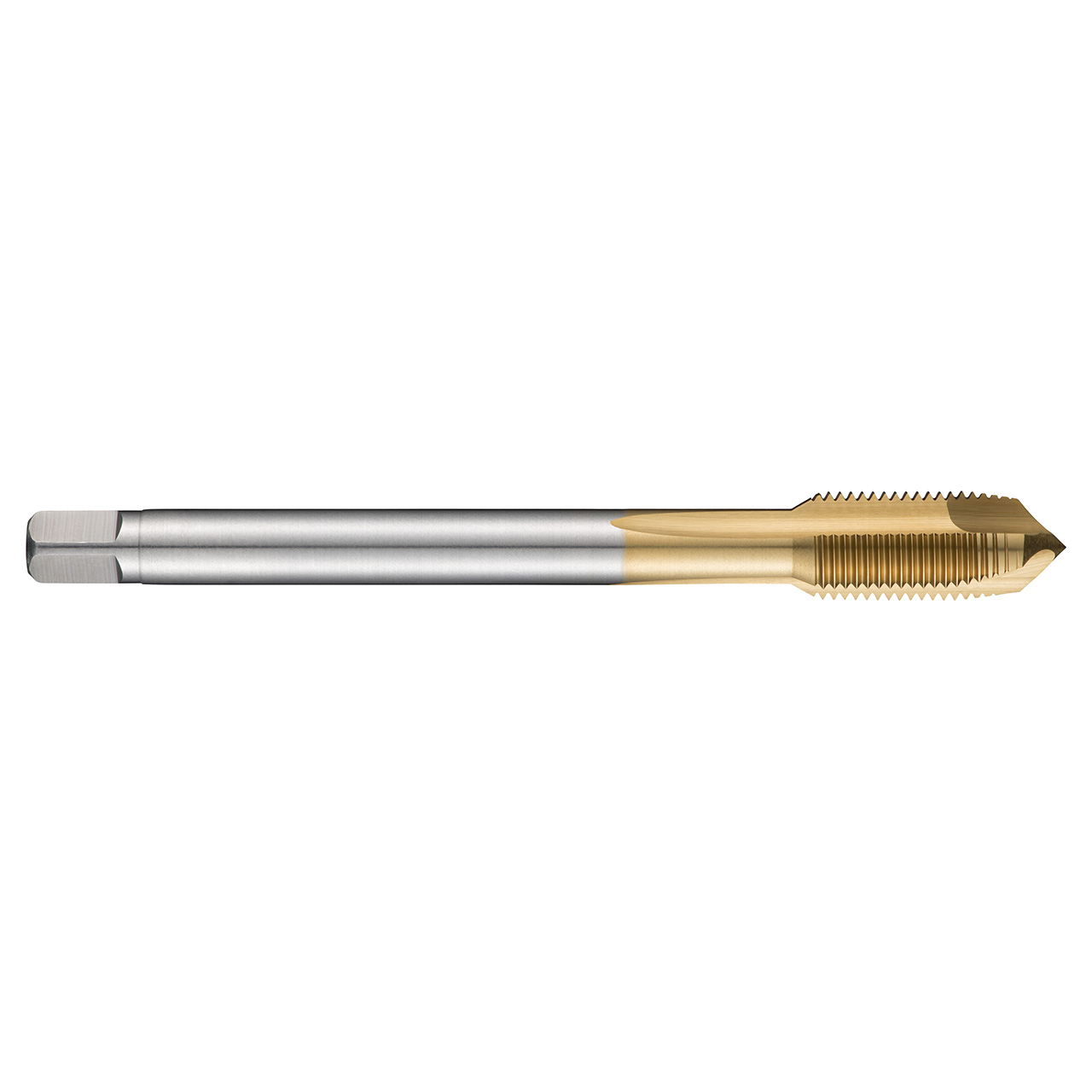

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M12 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium.
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 7mm |
| No of Flutes | 3 |
| Thread Pitch (mm) | 1.5mm |
| Clamping Length | 10 |
| Thread Diameter Size | 12 |
| Threading Length (mm) | 21mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Gold |
| Thread Form | MF-Metric fine |
| Country of origin | India |
