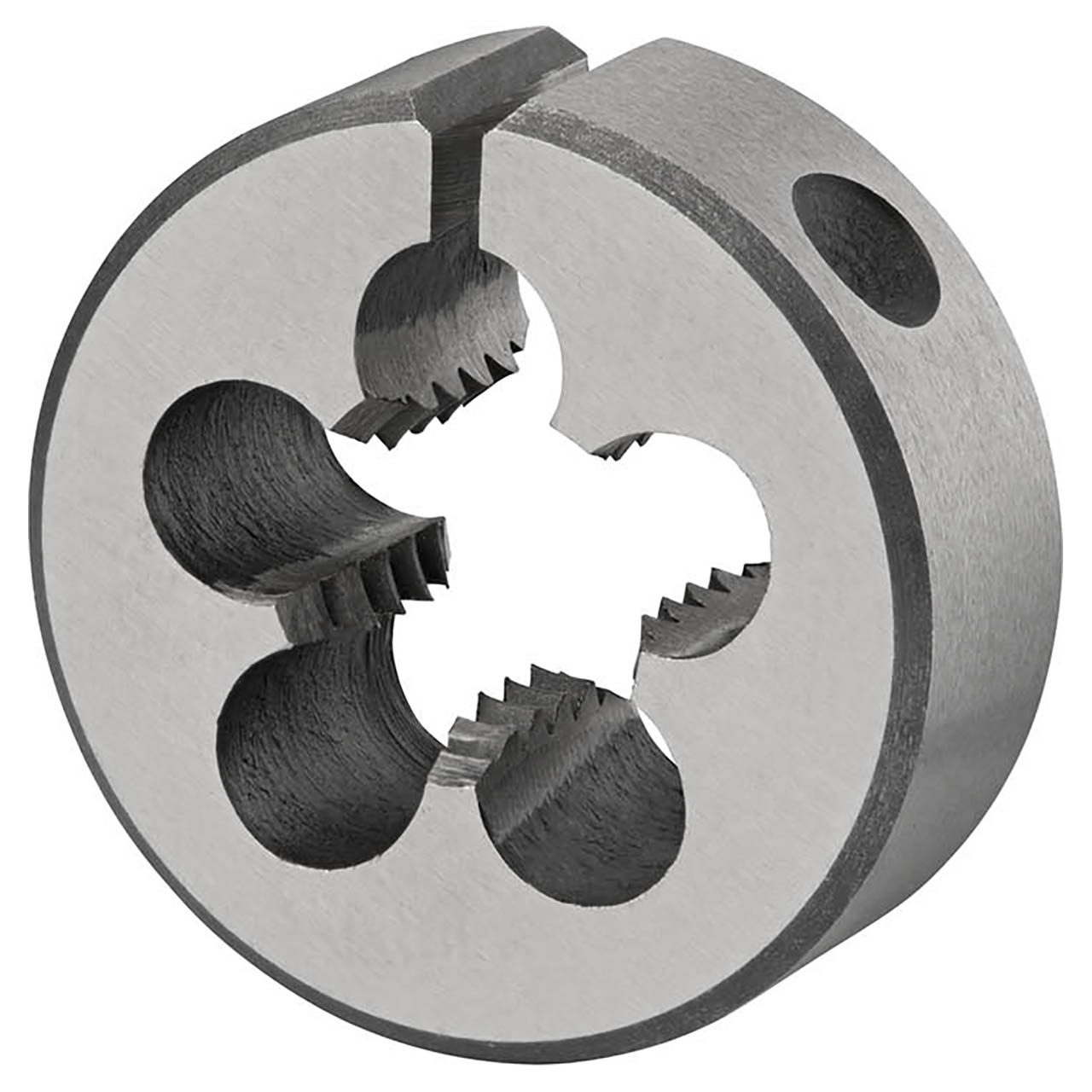

Adjustable circular split die, for Unified National Coarse thread UNC 1.1/8" with 7 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 3" outside diameter and 7/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 3" |
| Overall Length (Inch) | 0.875" |
| Thread Diameter (mm) | 28.58mm |
| Thread Diameter Size | 1.1/8 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
