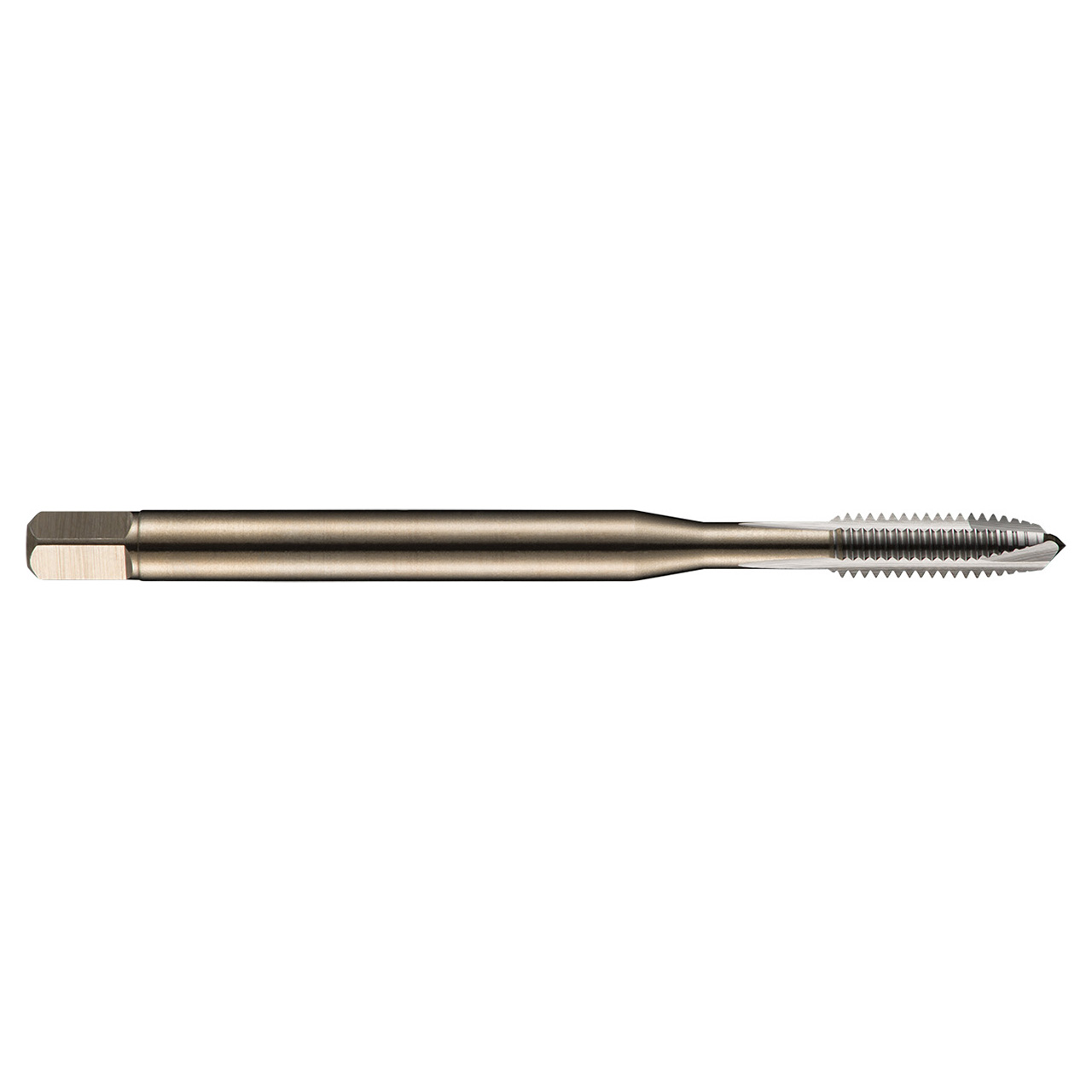

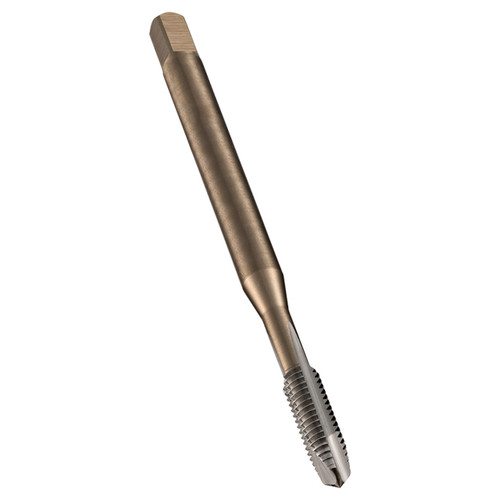

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 2.7559" |
| Clamping Width (mm) | 4.9mm |
| Thread Diameter (mm) | 4.826mm |
| No of Flutes | 3 |
| Usable Length (mm) | 25mm |
| Clamping Length | 8 |
| Thread Diameter Size | 10 |
| Threading Length (mm) | 13mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
