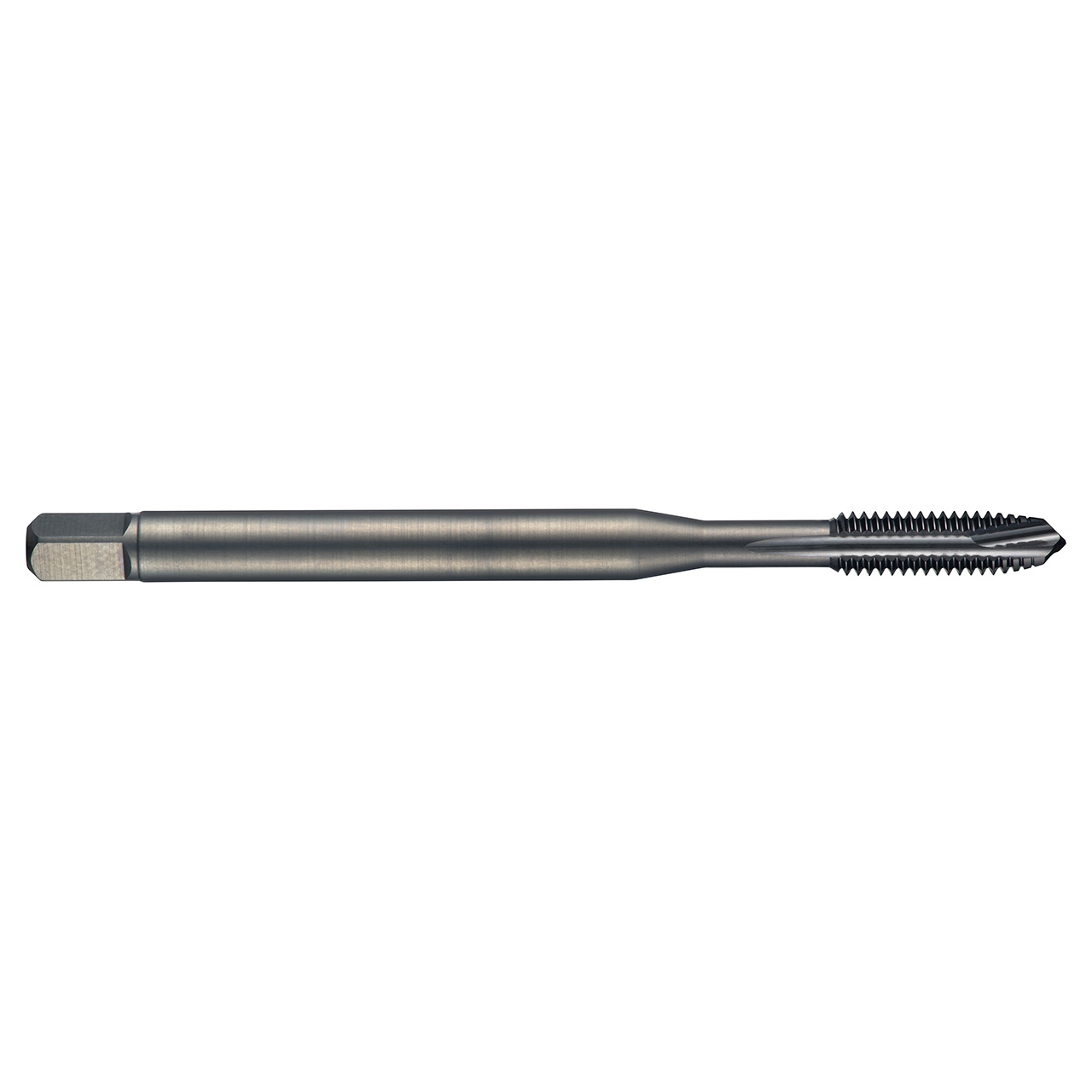

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 1/2" with 13 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.3543" |
| Overall Length (Inch) | 4.3307" |
| Clamping Width (mm) | 7mm |
| Thread Diameter (mm) | 12.7mm |
| No of Flutes | 3 |
| Clamping Length | 10 |
| Thread Diameter Size | 1/2 |
| Threading Length (mm) | 23mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNC-Unified Coarse |
