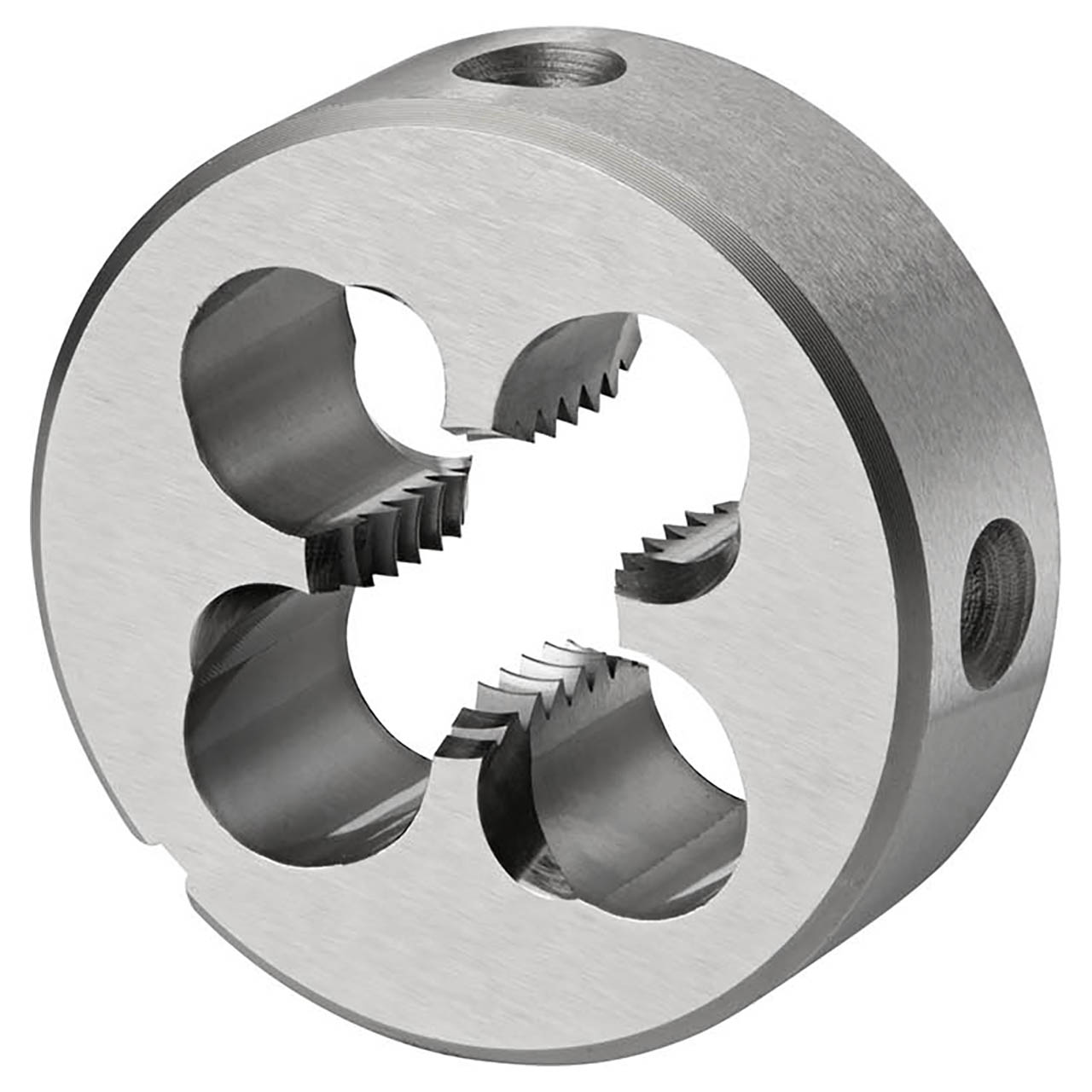

Solid round die with a gun nose, for ISO-Metric thread M12 with 1.75mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 14mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron.
Product Specifications
| Body Diameter (Inch) | 1.4961" |
| Overall Length (Inch) | 0.5512" |
| Thread Diameter (mm) | 12mm |
| Thread Pitch (mm) | 1.75mm |
| Thread Diameter Size | 12 |
| Material Code | HSS-E |
| Thread Tolerance Class | 6g |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | M-Metric coarse |
