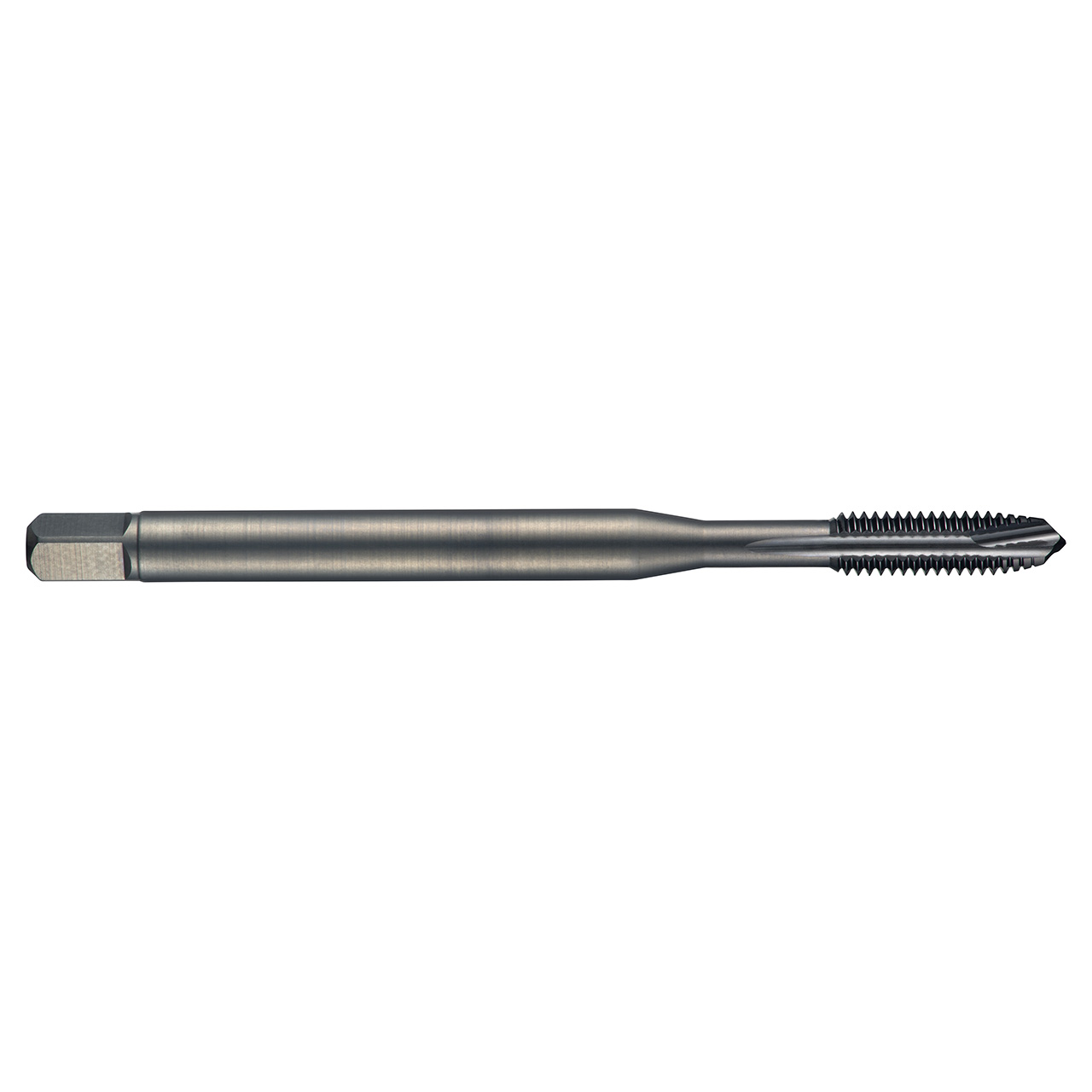

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for British Standard Pipe thread G 5/8" with 14 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.7087" |
| Overall Length (Inch) | 4.9213" |
| Clamping Width (mm) | 14.5mm |
| Thread Diameter (mm) | 22.911mm |
| No of Flutes | 4 |
| Clamping Length | 17 |
| Thread Diameter Size | 5/8 |
| Threading Length (mm) | 24mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | G-British standard pipe fastening-G series |
