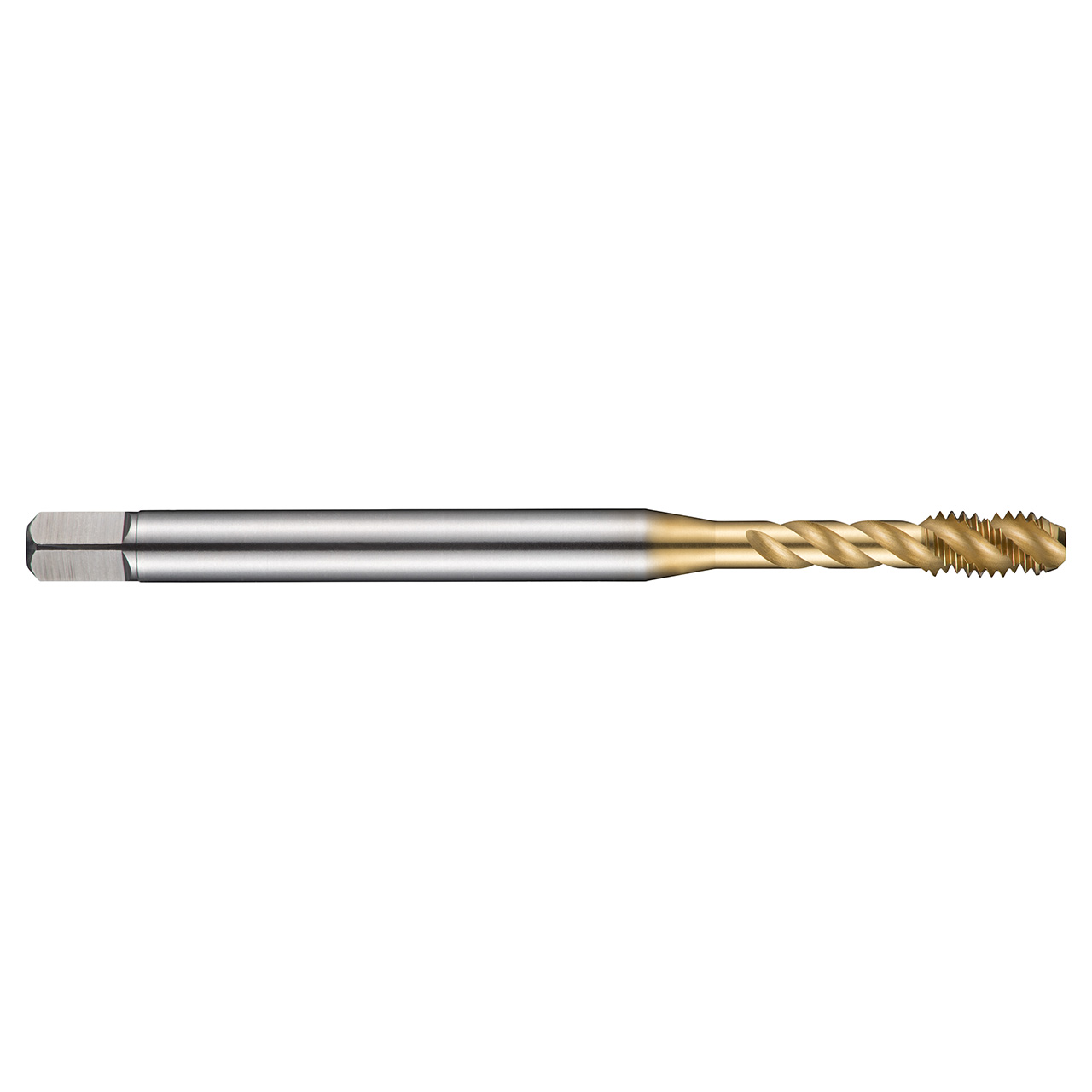

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M27 with 3.00mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in steel and cast steel, ferritic, martensitic and austenitic stainless steel and cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.7874" |
| Overall Length (Inch) | 6.2992" |
| Clamping Width (mm) | 16mm |
| No of Flutes | 4 |
| Flute Helix Angle | 45 |
| Thread Pitch (mm) | 3mm |
| Clamping Length | 19 |
| Thread Diameter Size | 27 |
| Threading Length (mm) | 30mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | TiN |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Gold |
| Thread Form | M-Metric coarse |
