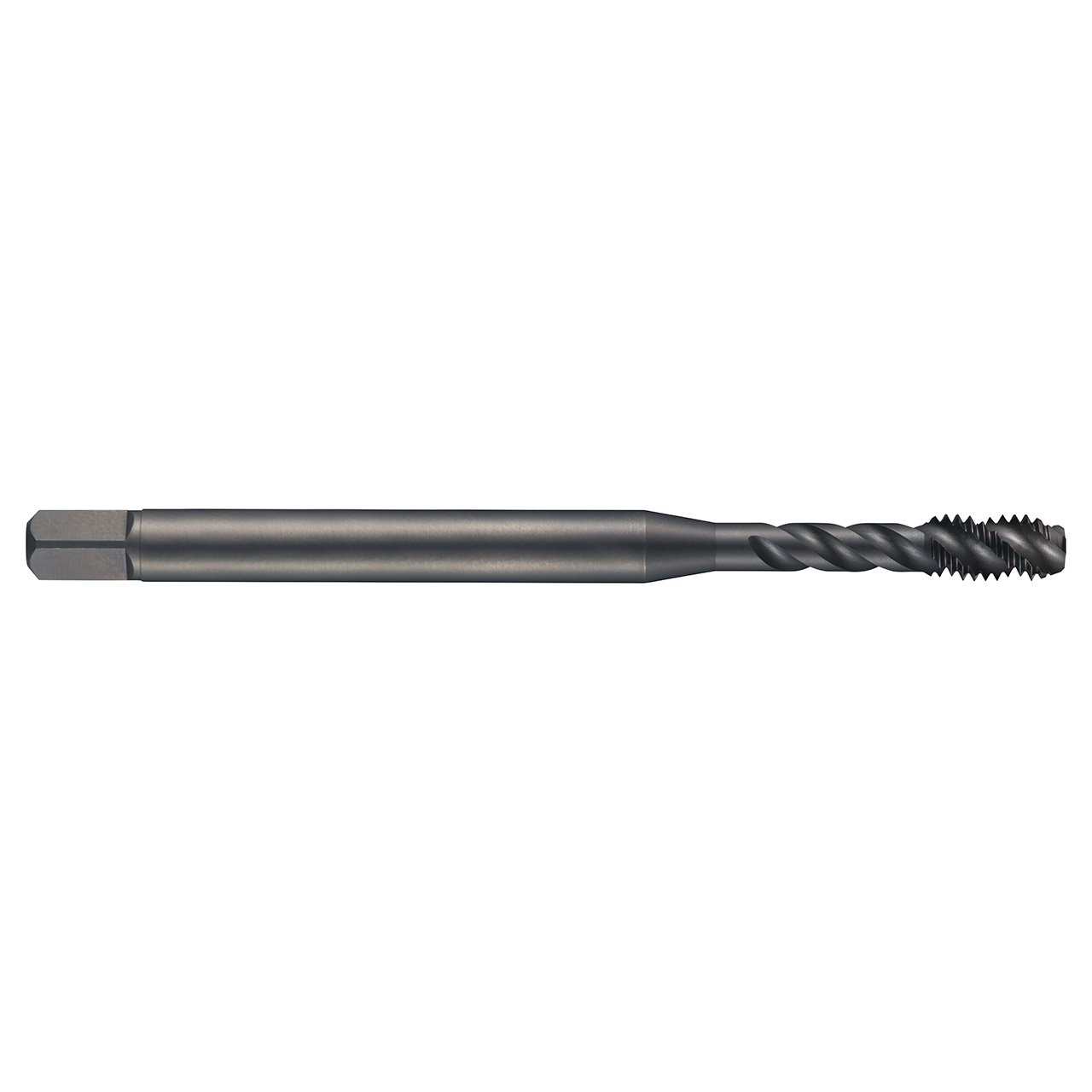

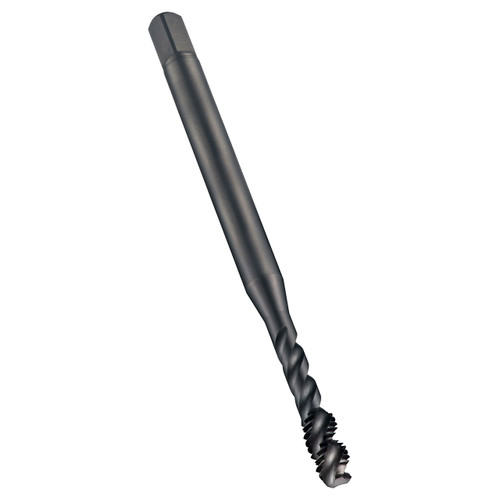

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M33 with 3.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 25.0mm shank and 20.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45 Degree helix angle for 2.5xD blind hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.9843" |
| Overall Length (Inch) | 7.0866" |
| Clamping Width (mm) | 20mm |
| No of Flutes | 4 |
| Flute Helix Angle | 45 |
| Thread Pitch (mm) | 3.5mm |
| Clamping Length | 23 |
| Thread Diameter Size | 33 |
| Threading Length (mm) | 36mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
| Country of origin | India |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Dormer
Thread Limit:
6H
Number of Flutes:
4
Material:
HSS-E-PM
Finish/Coating:
Steam Tempered
Flute Direction:
Right Hand
Overall Length (Decimal Inch):
7.0866"
Overall Length (mm):
180.00mm
