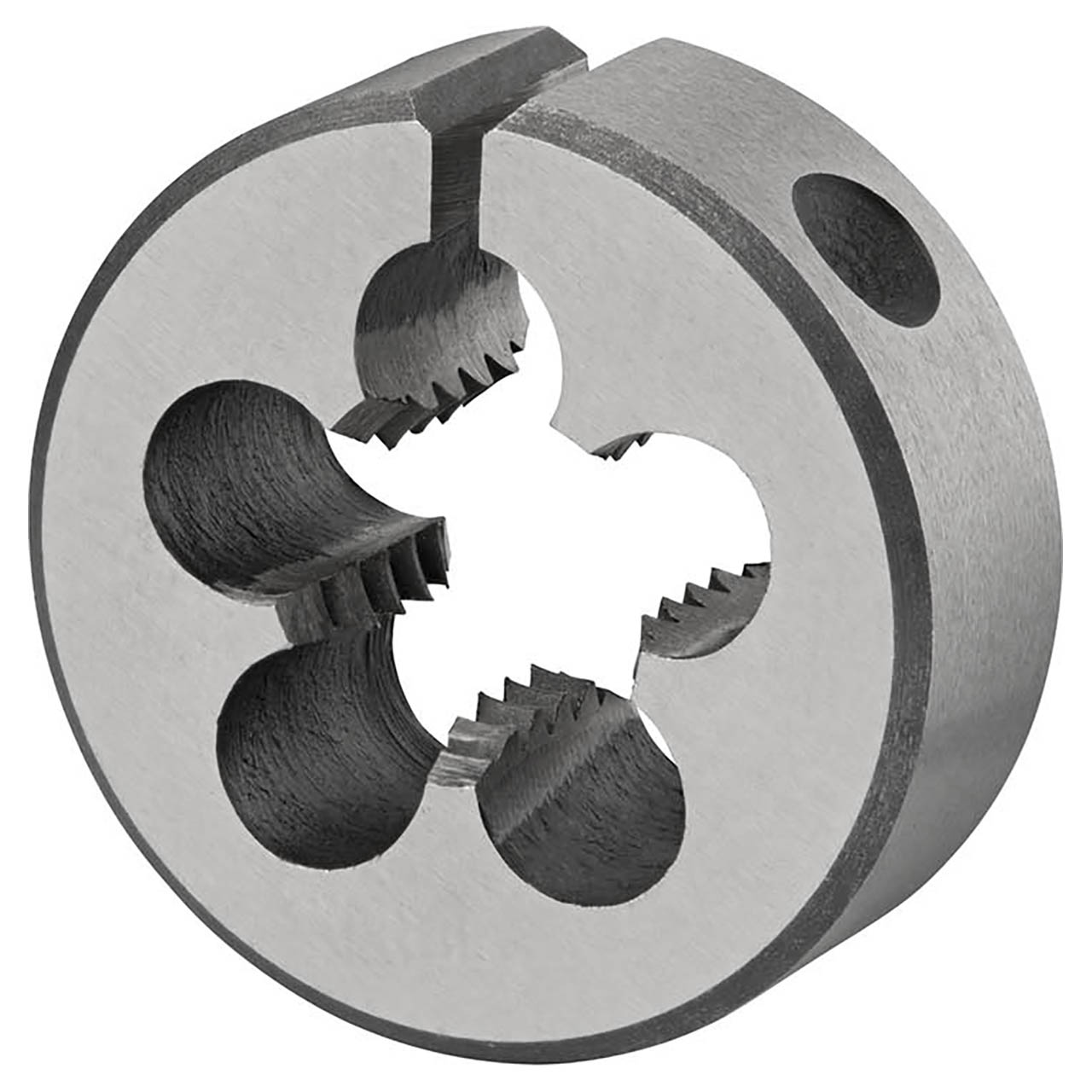

Adjustable circular split die, for Unified National Coarse thread UNC 5/8" with 11 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 2" outside diameter and 5/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
Product Specifications
| Body Diameter (Inch) | 2" |
| Overall Length (Inch) | 0.625" |
| Thread Diameter (mm) | 15.88mm |
| Thread Diameter Size | 5/8 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Thread Form | UNC-Unified Coarse |
