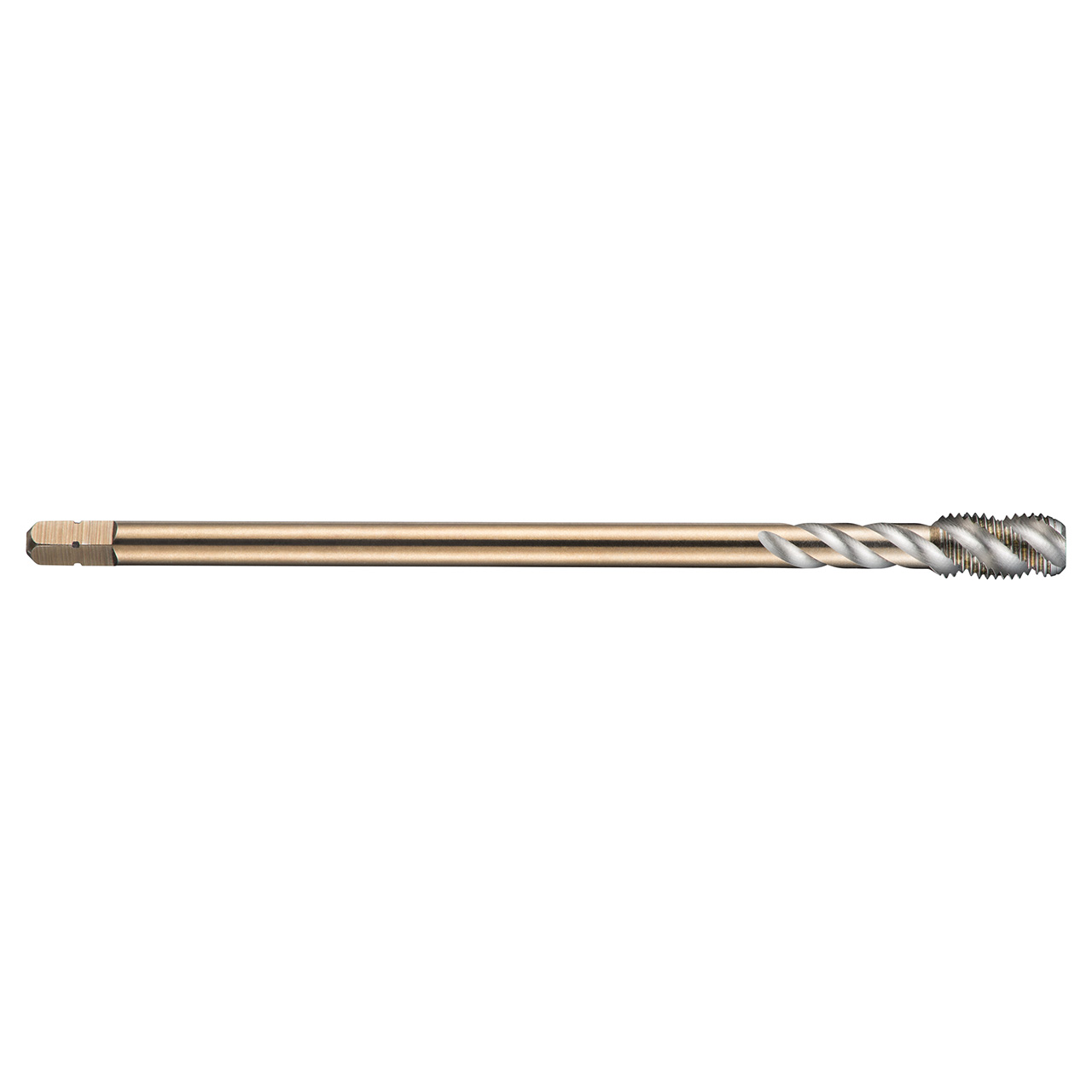

Dormer EX10M8X.75 | 0.2362" Diameter x 3.1496" OAL 3 Flute Bright Coated Spiral Flute Tap

$47.70
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023287
Weight:
0.74 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M8 with 0.75mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.2362"
Overall Length (Inch)3.1496"
Clamping Width (mm)4.9mm
No of Flutes3
Flute Helix Angle45
Thread Pitch (mm)0.75mm
Clamping Length8
Thread Diameter Size8
Threading Length (mm)13mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormMF-Metric fine
