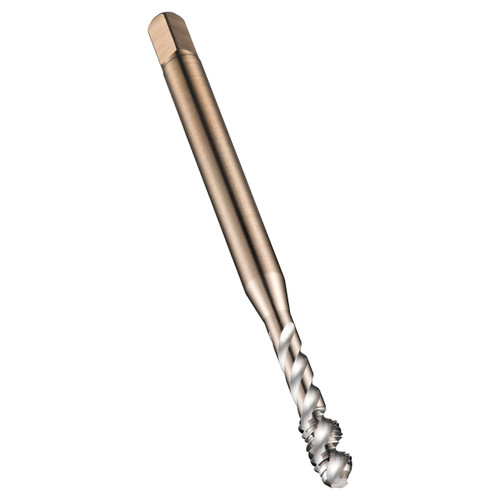

Dormer EX303/4 | 0.5512" Diameter x 4.9213" OAL 4 Flute Bright Coated Spiral Flute Tap

$177.75
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15023813
UPC:
7320760168400
Weight:
4.94 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.


Product Specifications
Connection Diameter (Inch)0.5512"
Overall Length (Inch)4.9213"
Clamping Width (mm)11mm
Thread Diameter (mm)19.05mm
No of Flutes4
Flute Helix Angle45
Clamping Length14
Thread Diameter Size3/4
Threading Length (mm)25mm
Material CodeHSS-E-PM
Thread Tolerance Class2B
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormUNF-Unified Fine
