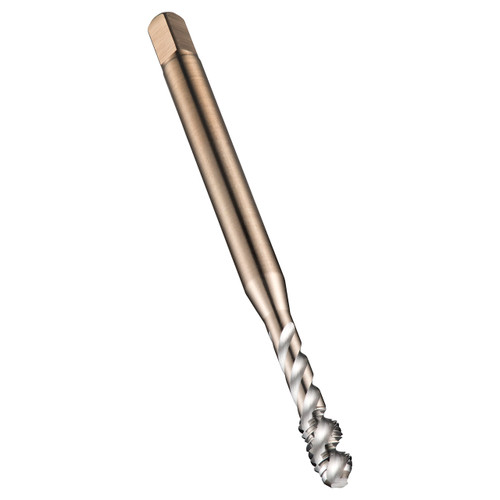

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for British Standard Pipe thread G 1/4" with 19 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.
Product Specifications
| Connection Diameter (Inch) | 0.4331" |
| Overall Length (Inch) | 3.937" |
| Clamping Width (mm) | 9mm |
| Thread Diameter (mm) | 13.157mm |
| No of Flutes | 3 |
| Flute Helix Angle | 45 |
| Clamping Length | 12 |
| Thread Diameter Size | 1/4 |
| Threading Length (mm) | 15mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | G-British standard pipe fastening-G series |
