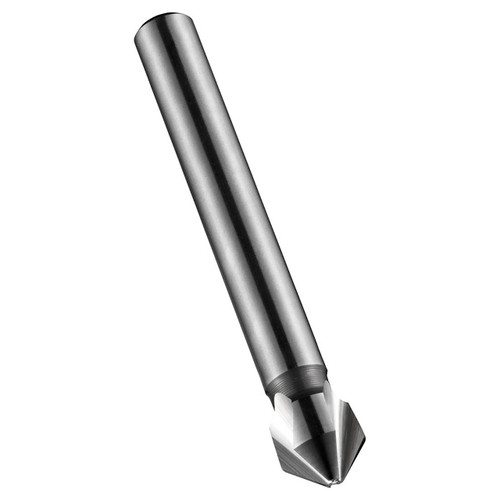

Countersink with 3-flutes, 90 Degree chamfering angle, maximum diameter 10.00mm with an overall length of 50mm and a head length of 7.6mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys.
| EDP Number | 0108505 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.2362" |
| Overall Length (Inch) | 1.9685" |
| Point Angle | 90 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | France |
