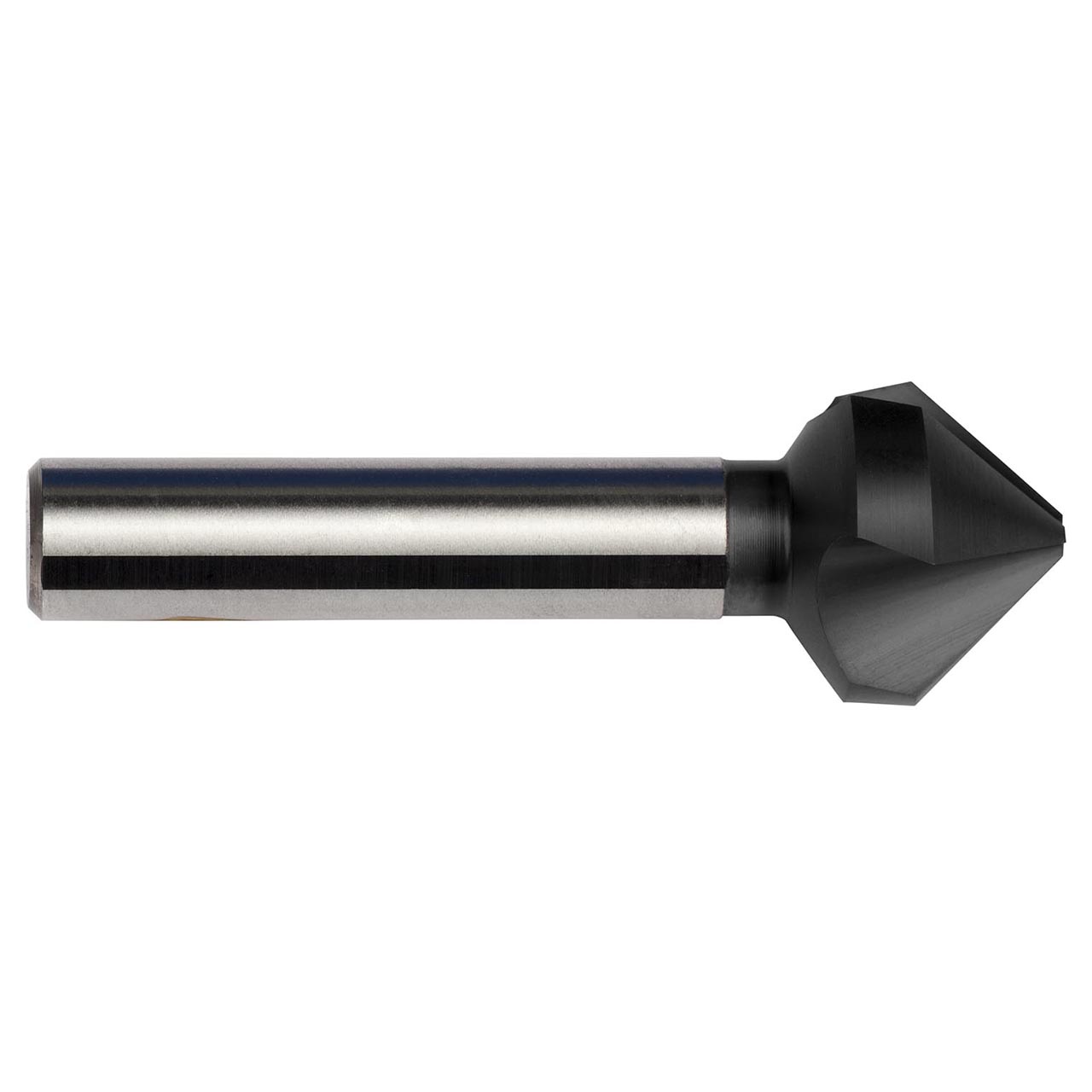

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 67mm and a head length of 15.7mm and 10mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
EDP Number | 47147799 |
Flute Count | 3 |
Connection Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 2.6378" |
Point Angle | 90 |
Material Code | HSS |
Cutting Direction | Right Hand |
Coating | TiAlN |
Surface Color | Black-Deep Purple |
