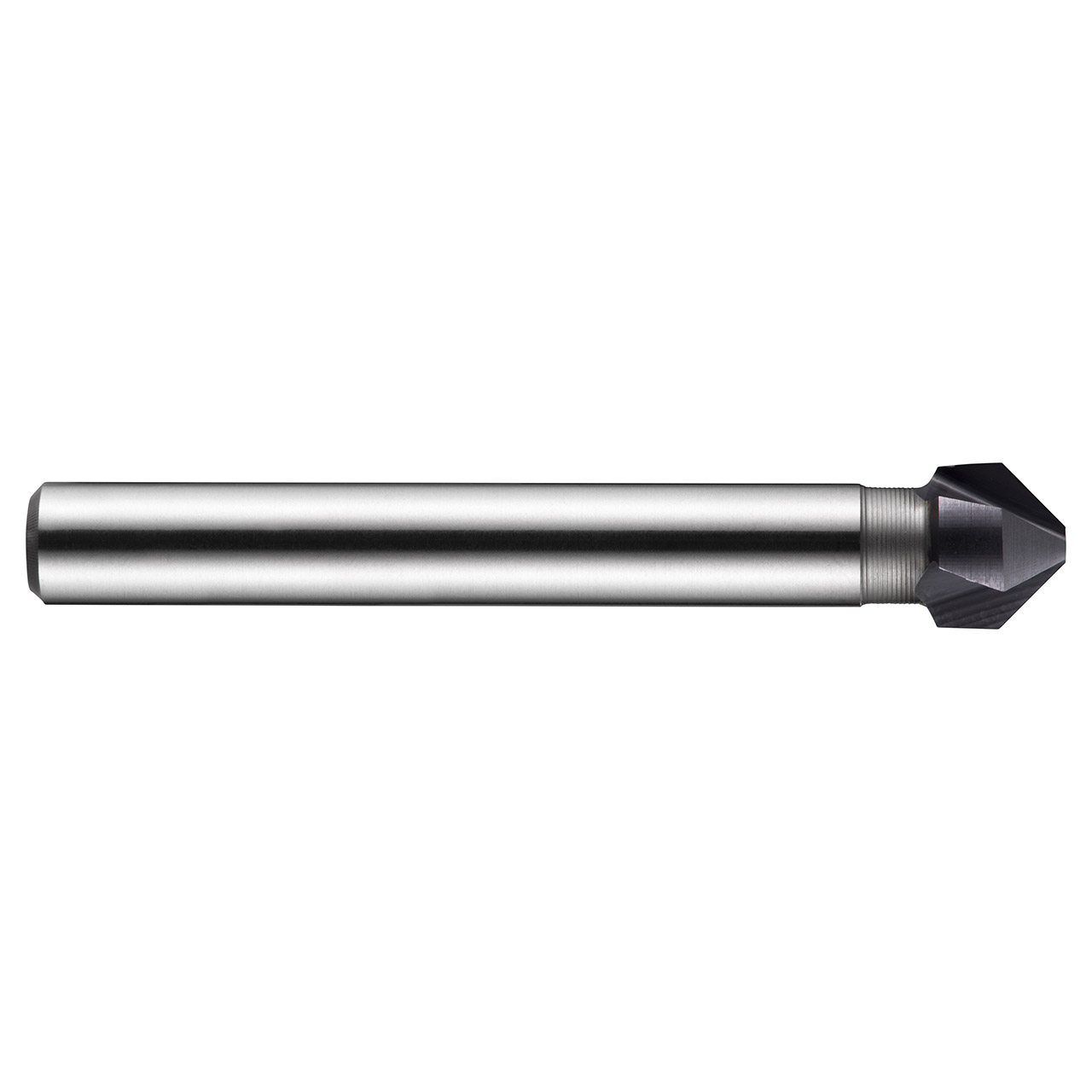

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 67mm and a head length of 15.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys.
| EDP Number | 0109687 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.6378" |
| Point Angle | 90 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Surface Color | Black-Deep Purple |
