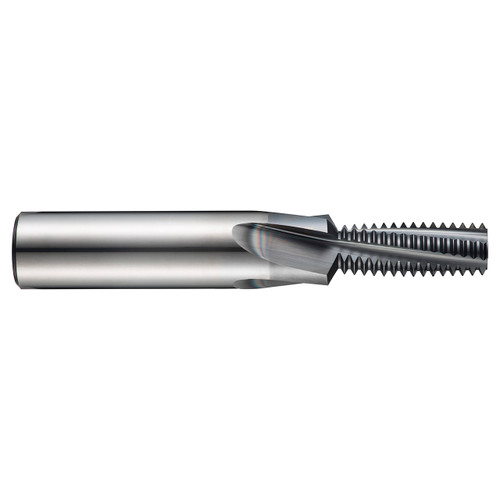

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M14 with 2.00mm pitch, dimensions according to DORMER standard with 4 flutes, 11.6mm cutting diameter and 16mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10 Degree helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals.
Product Specifications
| Connection Diameter (Inch) | 0.6299" |
| Cutting Diameter (Inch) | 0.4567" |
| Overall Length (Inch) | 3.622" |
| Max Depth of Cut (mm) | 30mm |
| No of Flutes | 4 |
| Flute Helix Angle | 10 |
| Usable Length (mm) | 32.2mm |
| Thread Pitch (mm) | 2mm |
| Thread Diameter Size | M14 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
