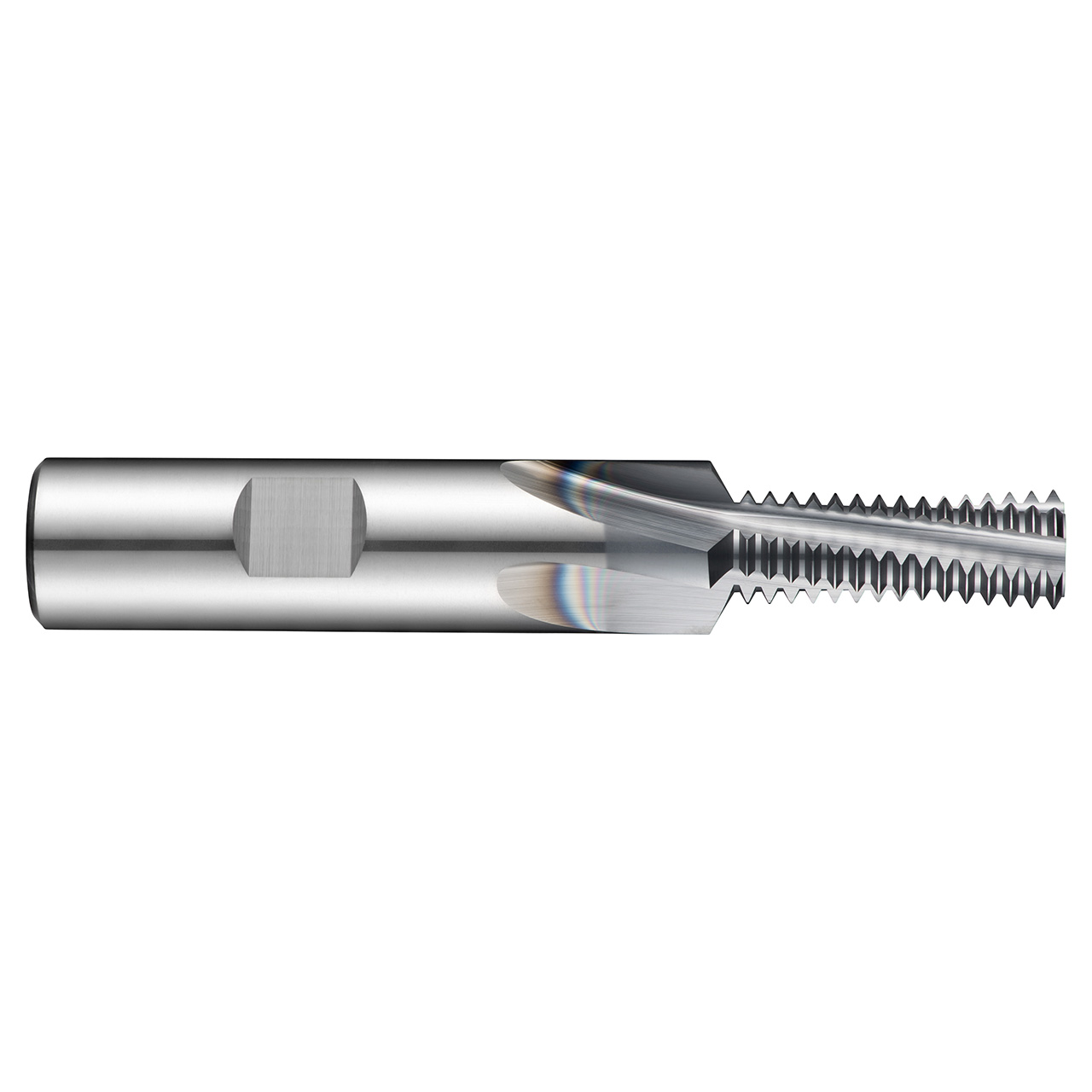

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M10 with 1.50mm pitch, dimensions according to DORMER standard with 3 flutes, 8.2mm cutting diameter and 12mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10 Degree helix angle for milling a maximum of 21mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys.
| Connection Diameter (Inch) | 0.4724" |
| Cutting Diameter (Inch) | 0.3228" |
| Overall Length (Inch) | 3.2677" |
| Max Depth of Cut (mm) | 21mm |
| No of Flutes | 3 |
| Flute Helix Angle | 10 |
| Usable Length (mm) | 22.8mm |
| Thread Pitch (mm) | 1.5mm |
| Thread Diameter Size | M10 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | Germany |
