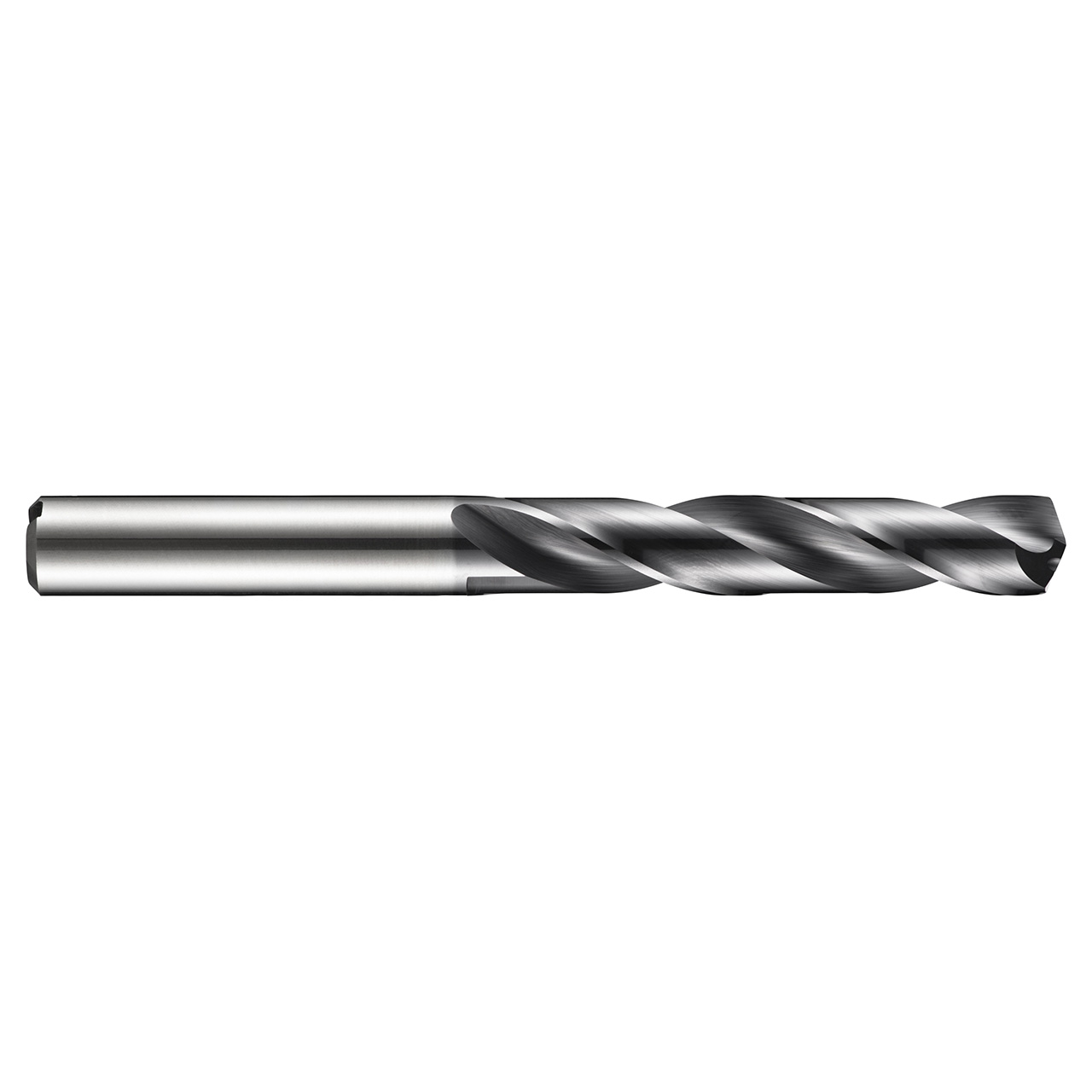

Dormer R45317.5 | 0.689" Diameter x 5.6299" OAL TiAlN Coated Jobber Length Drill Bit

$527.25
Brand:
Dormer
Drill Bit Size (Inch):
11/16"
Drill Bit Size (Decimal Inch):
0.6890"
Drill Bit Size (mm):
17.5mm
Drill Point Angle:
140°
Overall Length (Inch):
5-5/8"
Overall Length (Decimal Inch):
5.6299"
Overall Length (mm):
143mm
Cutting Direction:
Right Hand
Material:
HM
Finish/Coating:
TiAlN
SKU:
10112194
UPC:
7320760625323
Weight:
13.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Dormer's R453 Force-X drill is manufactured from premium carbide and can be used to drill a wide range of materials including steels, stainless steels and aluminium. The drill has a special flute design, incorporating a CTW flute (Continuously Thinned Web) and coolant feed, with increased strength, so the drill can operate at higher cutting speeds and feeds. The titanium aluminium nitride coating improves performance when drilling harder materials and extends the life of the tool, whilst the 140°, 4-facet split point assists with self-centering and reduces the force needed to drill into the workpiece. R453 high performance Force-X drills are capable of producing holes of high quality and accuracy (H9 hole tolerance), even at high speeds and feeds, with a drilling depth up to five times the diameter of the drill.


Product Specifications
EDP Number0625323
Usable Length5
Connection Diameter (Inch)0.7087"
Cutting Diameter (Inch)0.689"
Overall Length (Inch)5.6299"
Shank Length (mm)48mm
Point Angle140
Material CodeHM
Drill LengthStandard
Cutting DirectionRight Hand
CoatingTiAlN
Surface ColorBlack-Deep Purple
