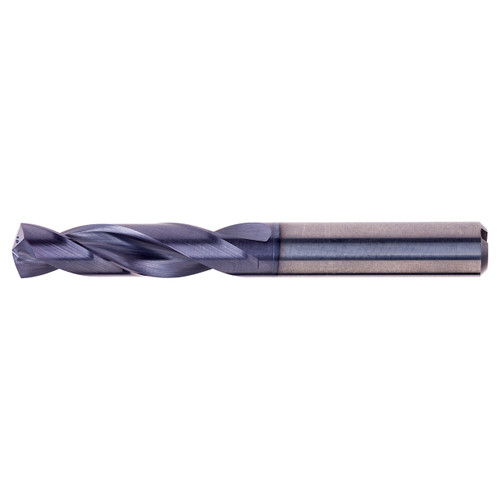

R467 Force-M solid carbide drills from Dormer have a special CTW flute design (Continuously Thinned Web) giving the drills extra strength. Together with the coolant feed, this allows the drills to operate at higher cutting speeds and feeds whilst still capable of producing a high quality and accurate hole (H9 hole tolerance). Manufactured from premium carbide, the drills are specifically designed for drilling stainless steels and other heat resistant super alloys, whilst the titanium aluminium nitride coating ensures great performance when drilling harder materials and extends the tool life. As a final touch, R467 carbide drills have a 140°, 4-facet split point which helps with self-centering and reduces the force needed to drill the workpiece.
| Usable Length | 3 |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3465" |
| Overall Length (Inch) | 3.5039" |
| Shank Length (mm) | 40mm |
| Point Angle | 140 |
| Material Code | HM |
| Drill Length | Short |
| Cutting Direction | Right Hand |
| Coating | TiAlN |
| Surface Color | Black-Deep Purple |
