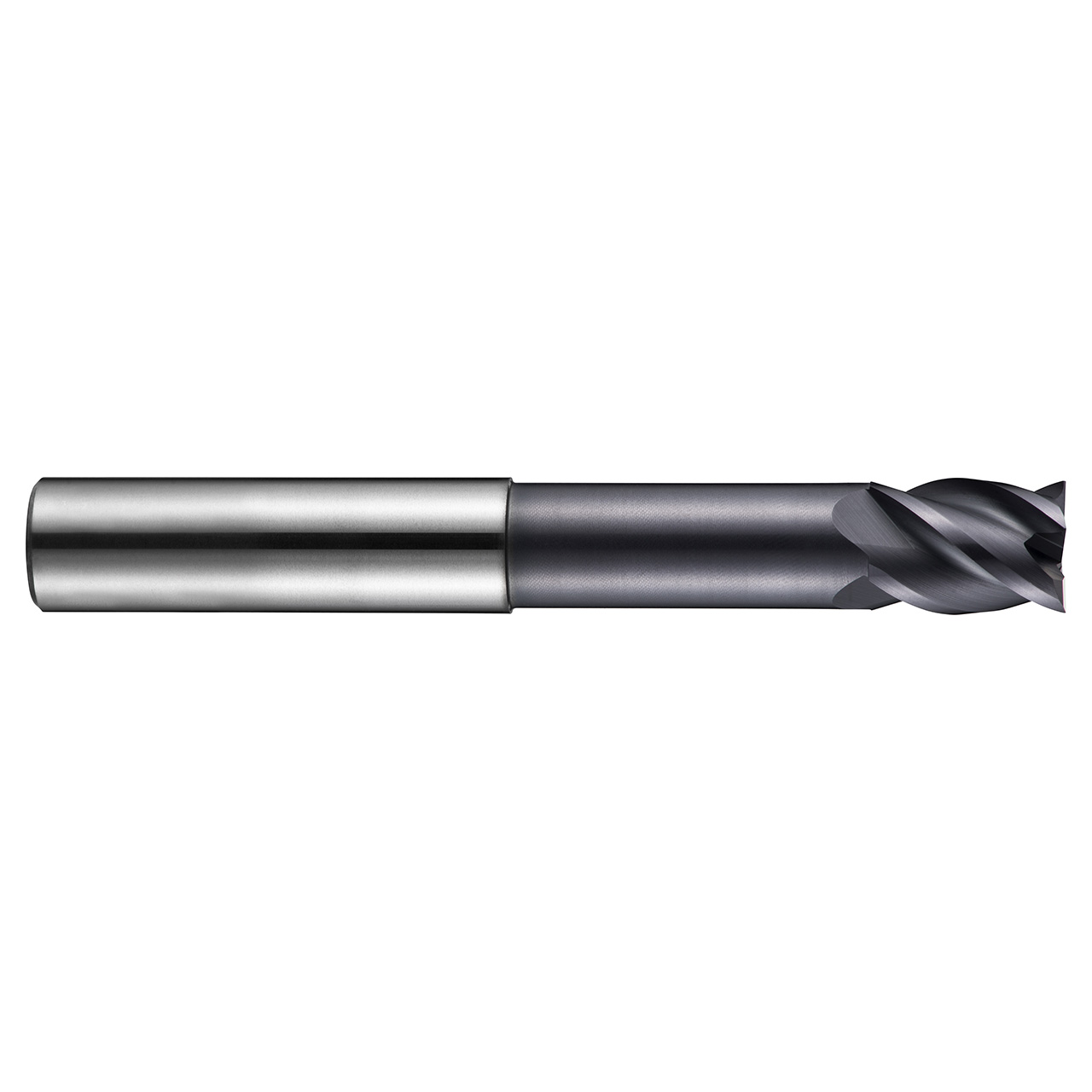

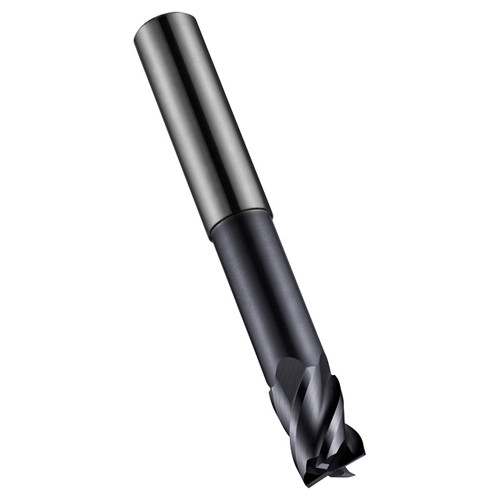

For high rigidity when milling and profiling in hard to reach areas, S219 4 flute milling cutters have a long reach and a 40 degree helix angle for high performance profiling on CNC machines. The aluminium titanium nitride coating increases the life of the tool and improves performance when milling difficult to machine materials and the premium carbide used in manufacture will further extend tool life and give you superior performance. S219 4 flute milling cutters are designed specifically for milling heat resistant alloys and other difficult to machine materials.
| Usable Length (mm) | 32mm |
| Max Depth of Cut (mm) | 9mm |
| Connection Diameter (Inch) | 0.1969" |
| Cutting Diameter (Inch) | 0.1969" |
| Overall Length (Inch) | 2.3622" |
| Material Code | HM |
| Radial Rake Angle | 3 |
| No of Flute | 4 |
| Flute Helix Angle | 40 |
| Coating | AlTiN |
| Surface Color | Black-Deep Purple |
