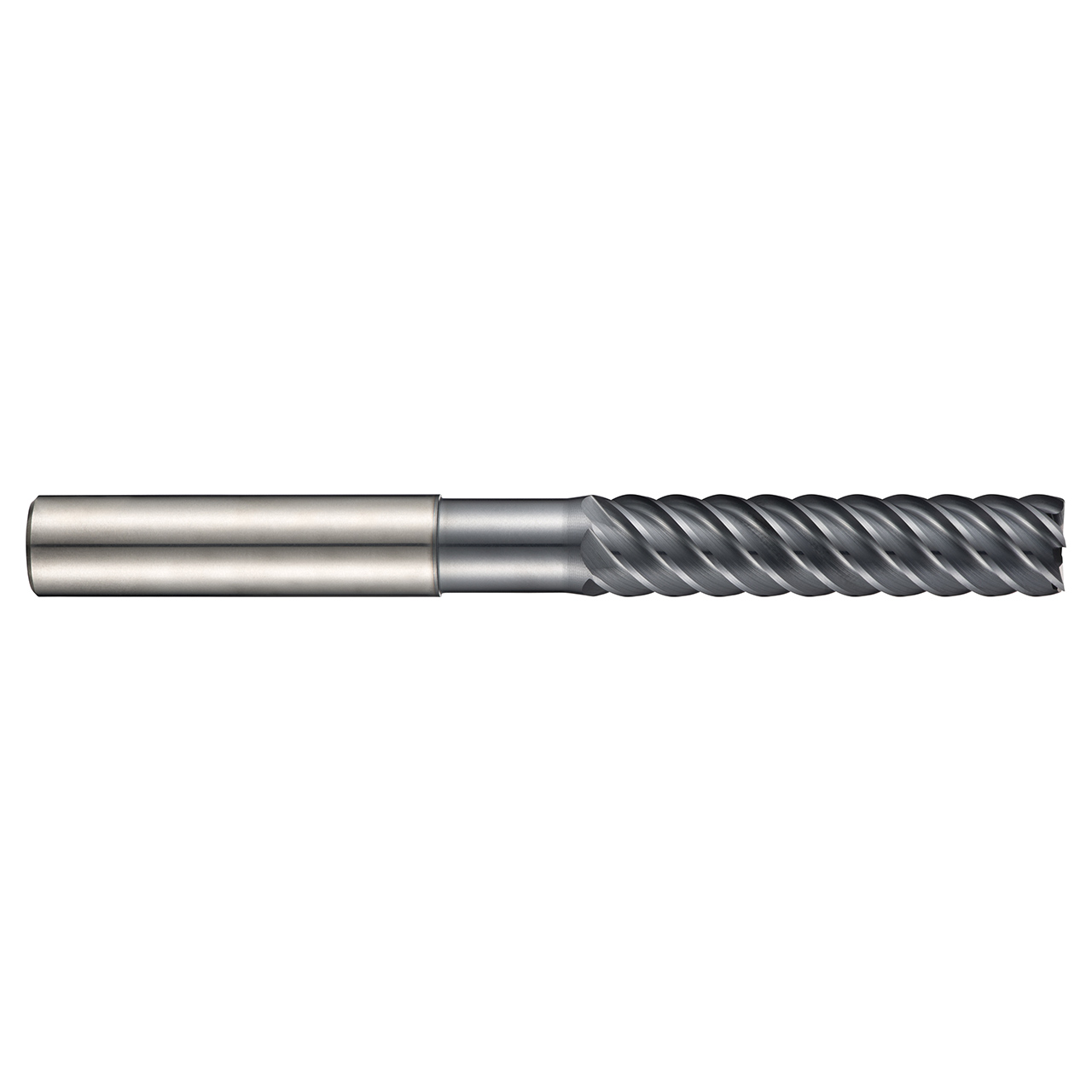

Dormer S2263.0 | 0.1181" Diameter x 2.9528" OAL 6 Flute AlTiN Coated Square End Mill

$61.80
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141120
UPC:
7320760683293
Weight:
0.88 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S226 milling cutters are part of Dormer extensive cutter range and are manufactured from premium carbide for superior performance and extended tool life. They are designed specifically for finishing in difficult to machine materials such as heat resistant alloys and, to improve performance under these conditions, are coated with an aluminium titanium nitride coating, which also further extends the tool life. The long series multi-flute design of S226 cutters provides high rigidity for finishing of deep profiles, and the 50 degree helix ensures high performance profiling on CNC machines.


Product Specifications
Usable Length (mm)30mm
Max Depth of Cut (mm)19mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)2.9528"
Material CodeHM
Radial Rake Angle3
No of Flute6
Flute Helix Angle50
CoatingAlTiN
Surface ColorBlack-Deep Purple
