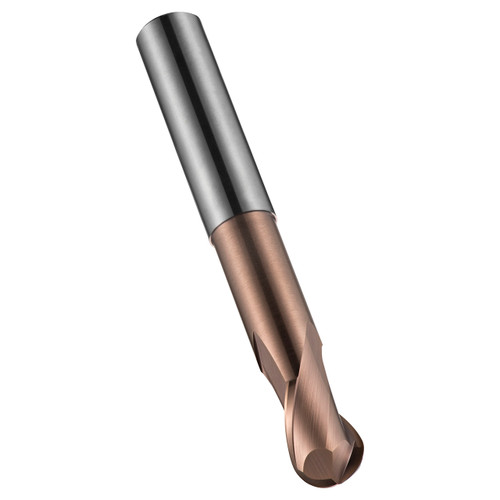

Dormer 6706486 | 2.00mm Diameter x 3.00mm Shank x 4.00mm Maximum Depth of Cut x 60.00mm OAL x 1.00mm Radius x 30 Degree Helix Angle 2 Flute TiSiN Coated HM S231 Ball End Mill

SKU: 25140831 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC: 7320760680353
$120.00 $72.00
(You save $48.00)
Shipping: Calculated at Checkout

About This Item

S231 premium carbide 2-flute milling cutters will give you superior performance and a longer tool life. The long reach 2-flute design makes these tools very rigid with increased strength and reduced vibration when machining in those difficult to reach areas, whilst the ball nose geometry makes the cutters perfect for high performance contouring of complex surfaces. S231 2-flute ball nose milling cutters are designed for high speed machining in difficult to machine materials such as heat resistant alloys, supported by the aluminium titanium nitride coating which improves performance when milling those materials and also extends the tool life.


Product Specifications
Usable Length (mm)14mm
Max Depth of Cut (mm)4mm
Connection Diameter (Inch)0.1181"
Cutting Diameter (Inch)0.0787"
Overall Length (Inch)2.3622"
Material CodeHM
Radial Rake Angle3
No of Flute2
Flute Helix Angle30
Corner Radius (mm)1mm
CoatingTiSiN
Surface ColorRose Gold
Country of originMalaysia
