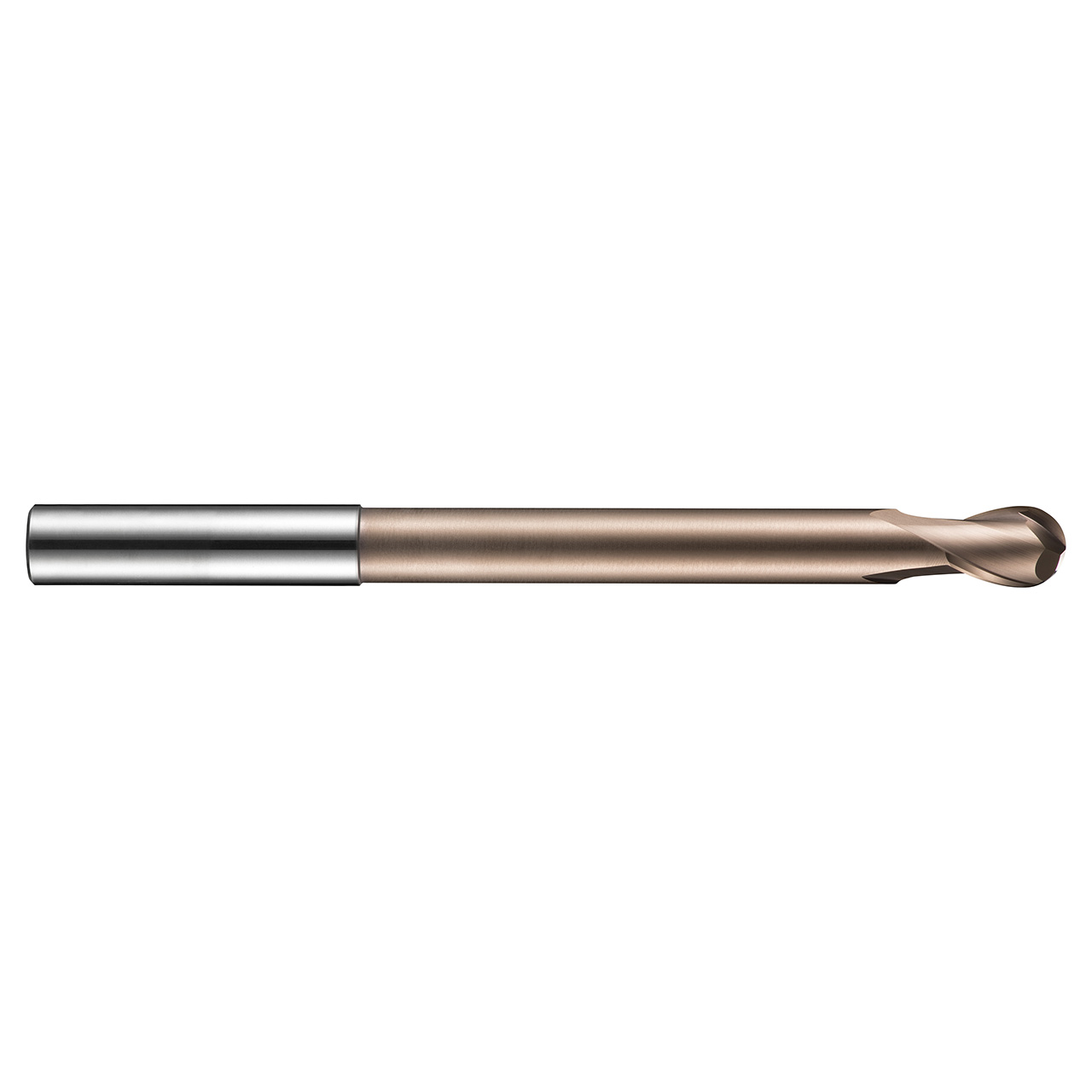

S233 2-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces and a titanium silicon nitride coating which improves performance when milling difficult to machine materials and also increase the life of the tool. Manufactured from premium carbide for superior performance and further enhancement to tool life, S233 cutters are specifically for high speed machining in difficult to machine materials such as heat resistant alloys, and have an extra long reach 2-flute design which provides good rigidity for increased strength and reduced vibration in difficult to reach areas.
Usable Length (mm) | 85mm |
Max Depth of Cut (mm) | 14mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3937" |
Overall Length (Inch) | 4.9213" |
Material Code | HM |
Radial Rake Angle | 3 |
No of Flute | 2 |
Flute Helix Angle | 30 |
Corner Radius (mm) | 5mm |
Coating | TiSiN |
Surface Color | Rose Gold |
