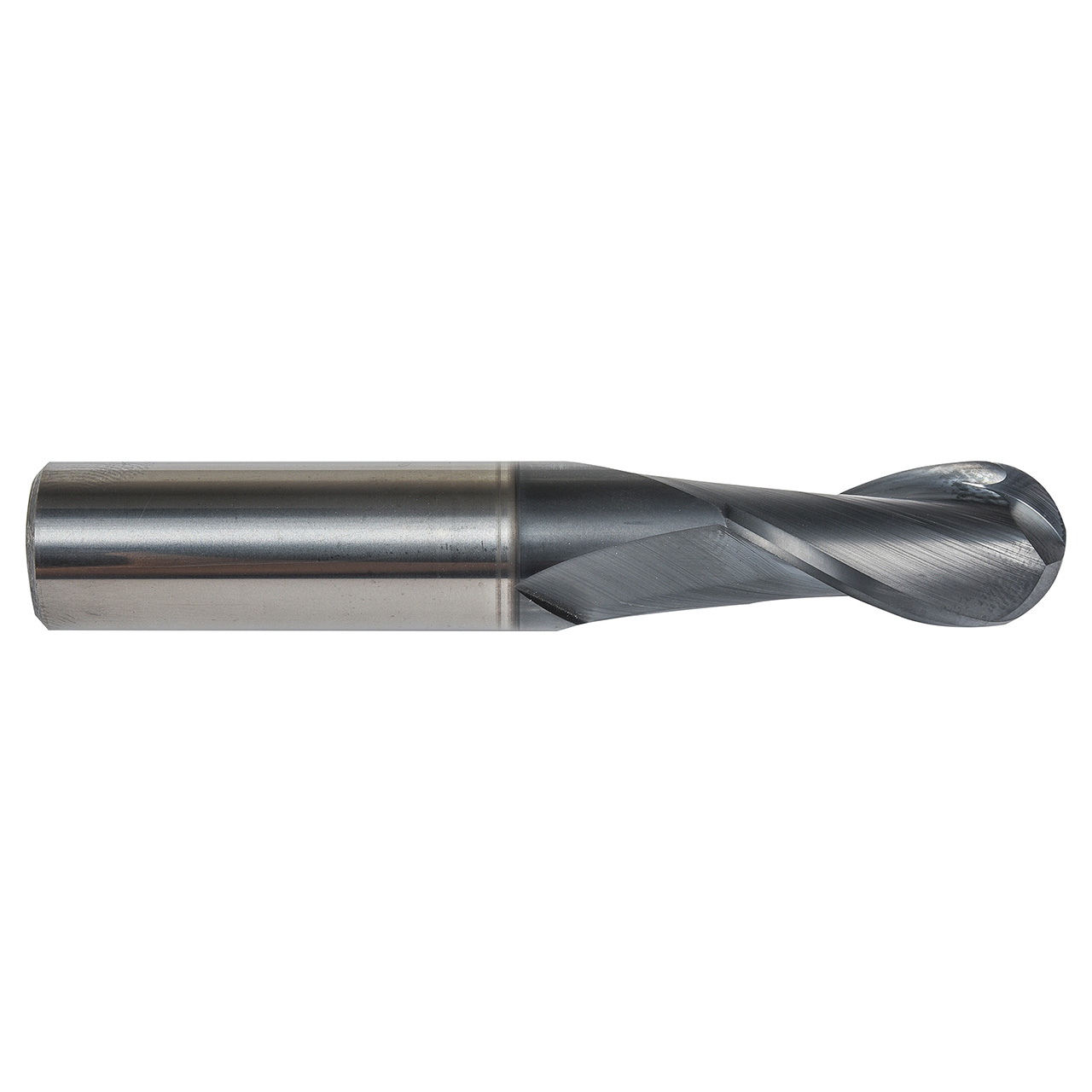

Dormer S2396.0 | 0.2362" Diameter x 2.4803" OAL 4 Flute TiAlN Coated Ball End Mill

$30.54
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140752
Weight:
0.63 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S239 4-flute end mills have an extra long shank to provide high rigidity for standard profile milling, and ball nose geometry designed for high performance contouring of complex surfaces. The premium carbide used in manufacture means you can expect superior performance and longer tool life, and the tools can be used for plunging, ramping and profile milling in steel, stainless steels and cast irons, making them a very versatile choice. S239 4-flute ball nosed milling cutters come with an aluminium titanium nitride coating which guarantees clean and accurate results by preventing workpiece material from sticking to the cutting surfaces of the tool.


Product Specifications
Max Depth of Cut (mm)19mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.2362"
Overall Length (Inch)2.4803"
Material CodeHM
No of Flute4
Flute Helix Angle30
CoatingTiAlN
Surface ColorBlack-Deep Purple

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
