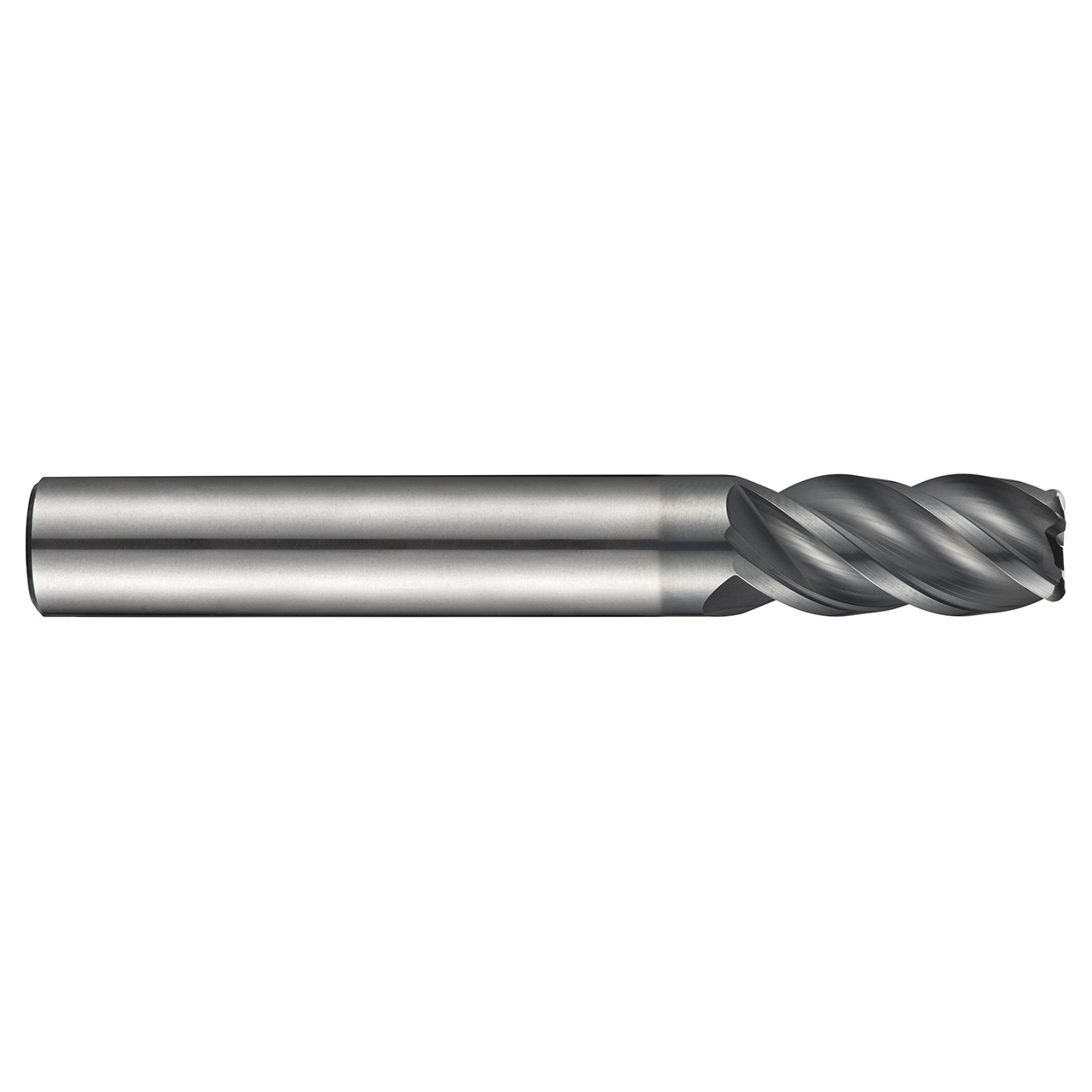

S262 4-flute milling cutters have a medium length flute with corner radius for use in standard profile milling where a fillet radius is required and have a 40 degree helix with unequal flute divide to reduce vibration and improve surface finish when used in CNC machines. The premium carbide used in manufacture will ensure great performance and extended tool life-further enhanced by the aluminium chrome nitride coating which also improves performance when milling difficult to machine materials.
| Max Depth of Cut (mm) | 20mm |
| Connection Diameter (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.315" |
| Overall Length (Inch) | 2.5197" |
| Material Code | HM |
| Radial Rake Angle | 4 |
| No of Flute | 4 |
| Flute Helix Angle | 40 |
| Corner Radius (mm) | 0.3mm |
| Coating | AlCrN |
| Surface Color | Black-Deep Purple |
