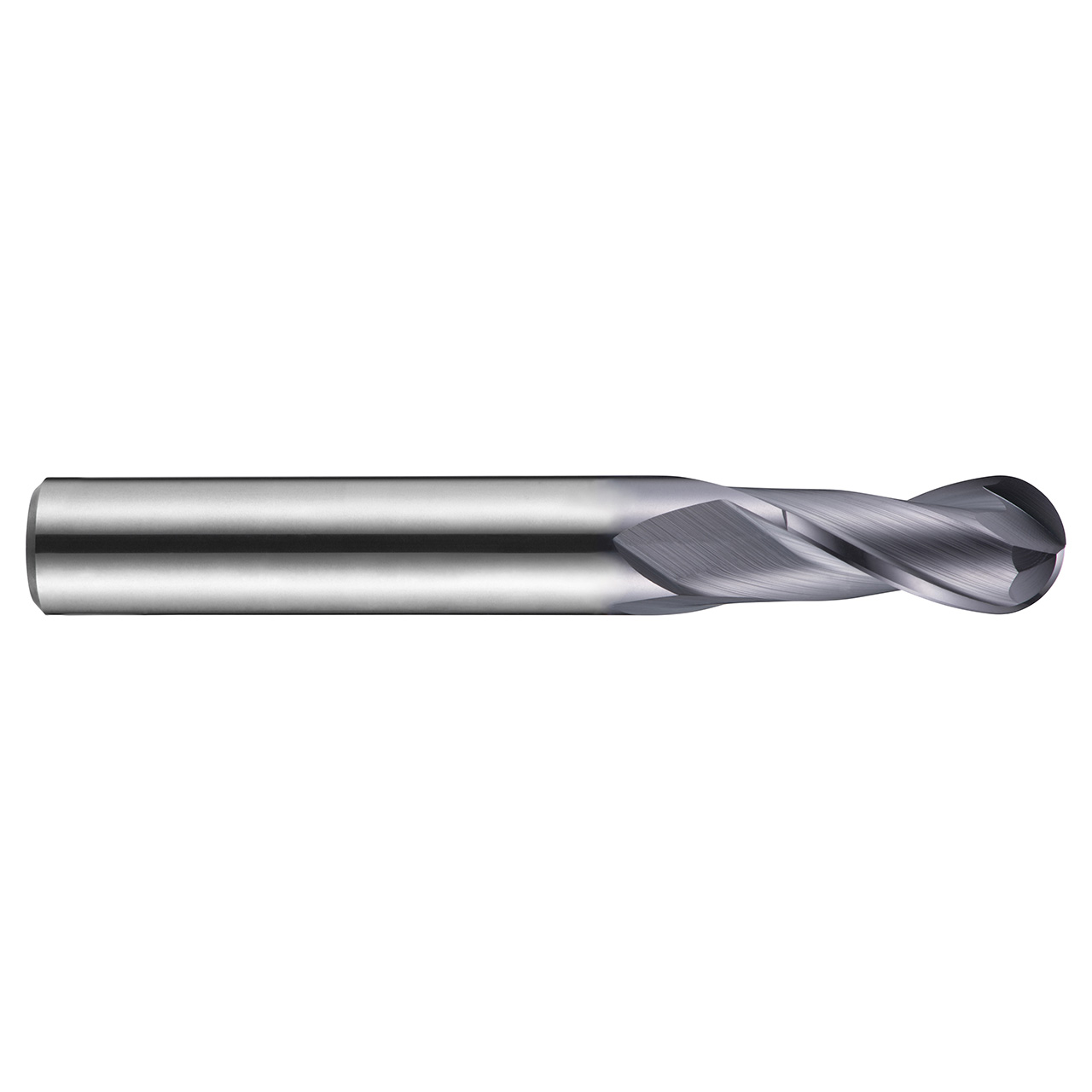

S501 2-flute milling cutters from Dormer have ball nose geometry for high performance contouring of complex surfaces. The X-CEED coating improves performance when milling difficult to machine materials and extends the tool life. Manufactured from premium carbide material for superior performance, the standard 2-flute design will provide the rigidity needed for increased strength and reduced vibration. S501 ball nose milling cutters can be used for contour milling in steels, stainless steelss and cast iron.
| Max Depth of Cut (mm) | 19mm |
| Connection Diameter (Inch) | 0.3937" |
| Cutting Diameter (Inch) | 0.3937" |
| Overall Length (Inch) | 2.8346" |
| Material Code | HM |
| Radial Rake Angle | 10 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 5mm |
| Coating | X-CEED |
| Surface Color | Black-Deep Purple |
