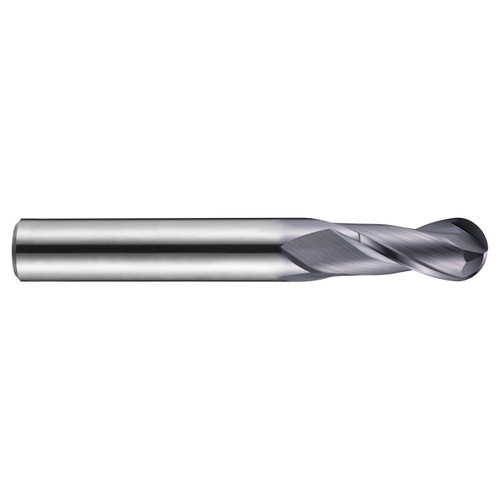

Dormer S51116.0 | 0.6299" Diameter x 3.937" OAL 4 Flute X-CEED Coated Ball End Mill

$368.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139652
Weight:
7.05 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

For contour milling in steels, cast iron and stainless steels, S511 4-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces. They are manufactured from premium carbide material which gives you superior performance and extended tool life and have a long, 4-flute design, giving high rigidity for increased strength and reduced vibration in deeper applications. S511 ball nose milling cutters have X-CEED coating which increases the life of the tool and improves performance when milling difficult to machine materials.


Product Specifications
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.6299"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle10
No of Flute4
Flute Helix Angle30
Corner Radius (mm)8mm
CoatingX-CEED
Surface ColorBlack-Deep Purple
