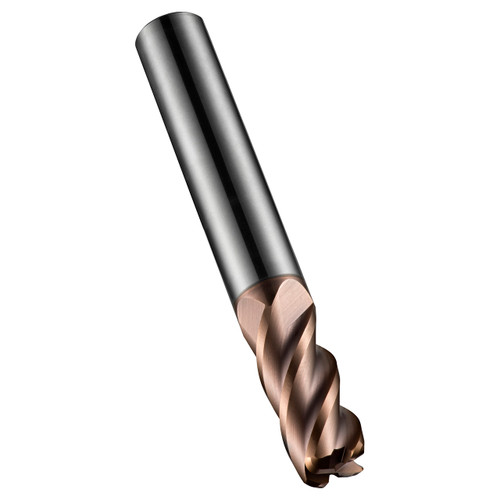

Dormer 6706755 | 16.00mm Diameter x 16.00mm Shank x 32.00mm Maximum Depth of Cut x 90.00mm OAL x 2.00mm Radius x 40 Degree Helix Angle 4 Flute TiSiN Coated HM S523 Corner Radius End Mill

One of Dormer's range of carbide cutters, the S523 corner radius milling cutter has a standard flute design with corner radius, providing high rigidity for standard profile milling where a standard radius is required. Made from premium carbide for great performance and longer tool life, the milling cutters have a titanium silicon nitride coating, which further increases the life of the tool and improves performance when milling difficult to machine materials. S523 corner radius end mills have a 40 degree helix for high performance profiling on CNC machines and are designed specifically for high speed machining in hardened tool steels up to 63HRC.
