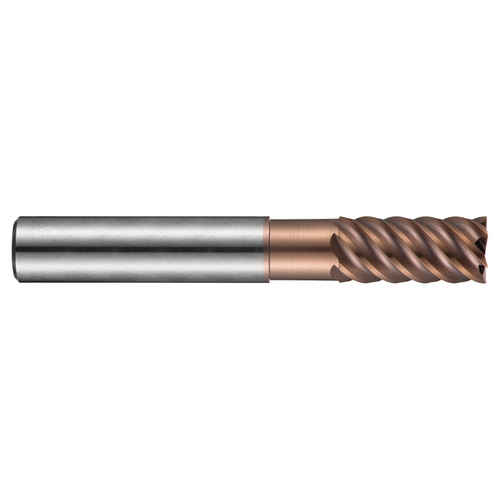

Dormer S52518.0 | 0.7087" Diameter x 3.937" OAL 8 Flute TiSiN Coated Square End Mill

$425.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141158
UPC:
7320760683675
Weight:
12.35 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

S525 carbide multi-flute milling cutters are designed specifically for milling in non-ferrous materials such as aluminium. For high performance profiling on CNC machines, the tools come with a 50 degree helix, whilst the multi-flute feature provides high rigidity for finishing of profiles. With a titanium silicon nitride coating for longer tool life and improved performance milling difficult to machine materials, the cutters are manufactured from premium carbide for great results and to further extend tool life.


Product Specifications
Usable Length (mm)53mm
Max Depth of Cut (mm)35mm
Connection Diameter (Inch)0.7087"
Cutting Diameter (Inch)0.7087"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle-26
No of Flute8
Flute Helix Angle50
CoatingTiSiN
Surface ColorRose Gold
