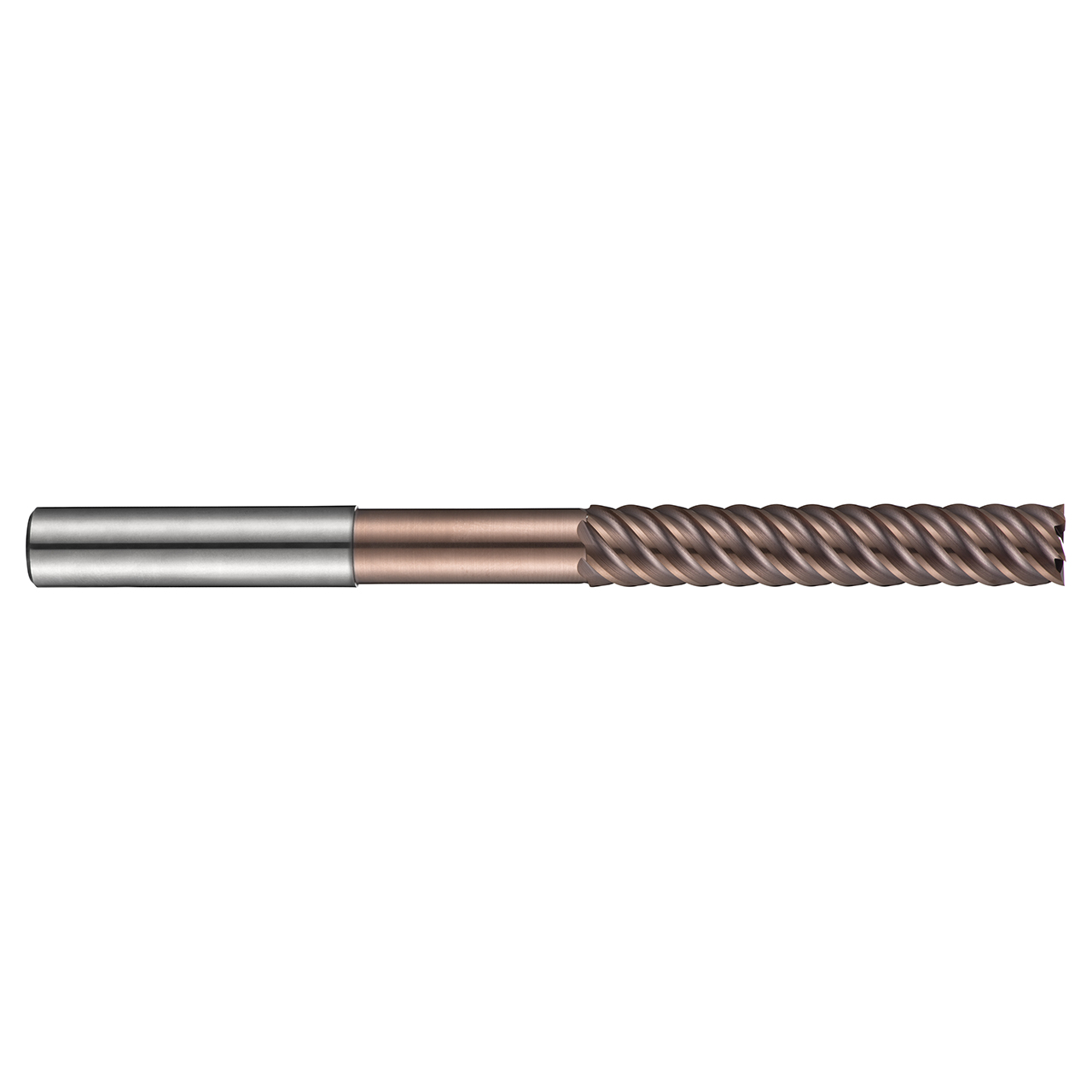

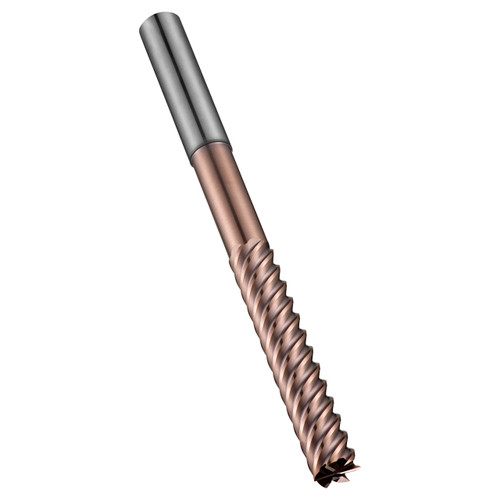

Dormer S5273.0 | 0.1181" Diameter x 3.937" OAL 6 Flute TiSiN Coated Square End Mill

$96.00
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25141168
Weight:
0.92 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

One of Dormer's extensive range of carbide milling cutters, S527 end mills have an extra long multi-flute design, giving high rigidity for finishing of deep profiles, and are made specifically for finishing in hardened tool steels up to 63HRC. The titanium silicon nitride coating means you get improved performance when milling difficult to machine materials, plus extended tool life. Manufactured from premium carbide for superior performance and to further extend tool life, S527 application end mills are designed specifically for finishing in hardened tool steels up to 63HRC.


Product Specifications
Usable Length (mm)60mm
Max Depth of Cut (mm)25mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)3.937"
Material CodeHM
Radial Rake Angle-26
No of Flute6
Flute Helix Angle50
CoatingTiSiN
Surface ColorRose Gold
