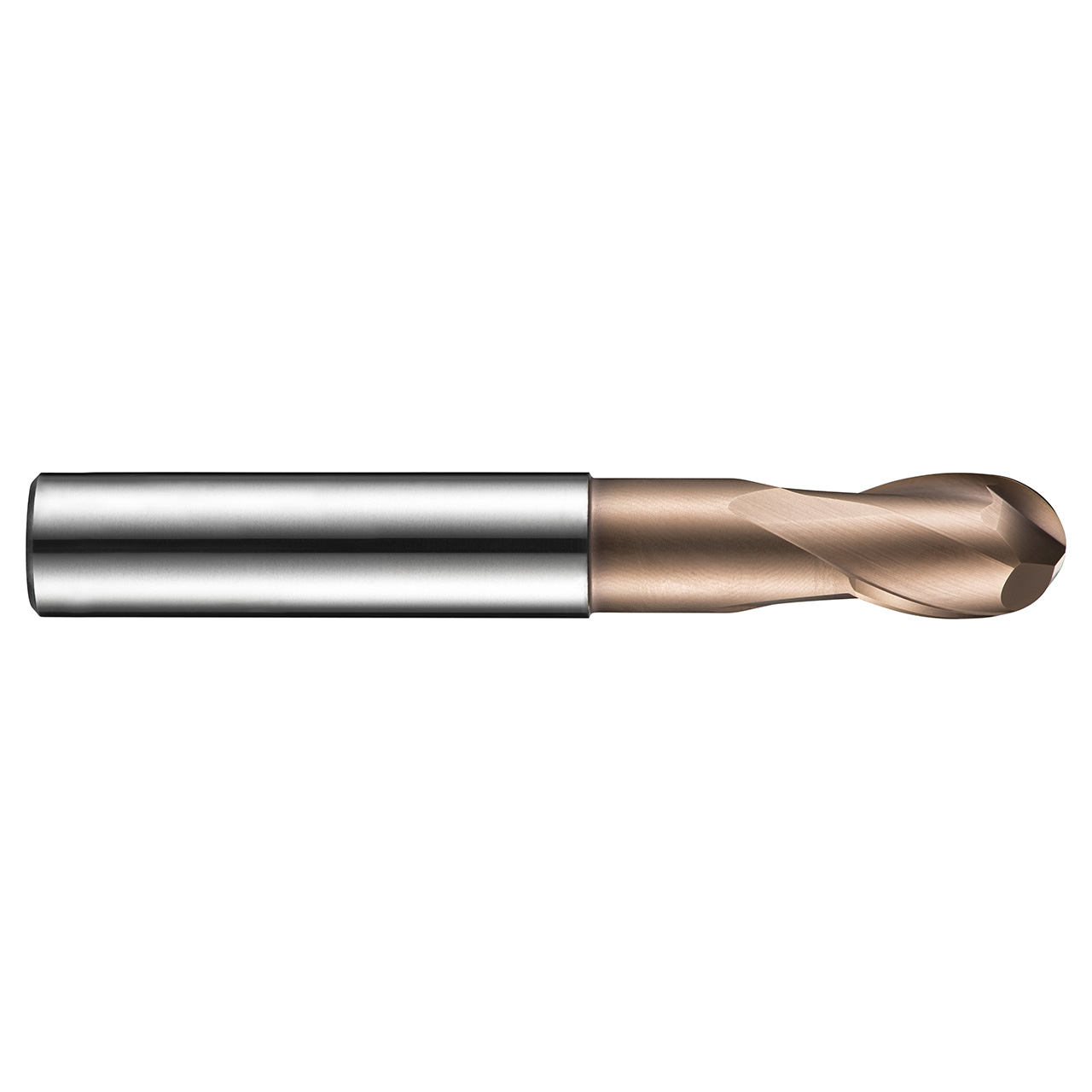

Dormer S5291.5 | 0.0591" Diameter x 1.9685" OAL 2 Flute TiSiN Coated Ball End Mill

$61.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140843
UPC:
7320760680483
Weight:
0.88 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

S529 2-flute slot drills have a ball nose geometry for high performance contouring of complex surfaces and have a short, 2-flute design, providing high rigidity for increased strength and reduced vibration. Manufactured from premium carbide material, providing longer tool life and superior performance, the tools have a titanium silicon nitride coating, which further enhances tool life and also improves performance when milling difficult to machine materials. S529 application slot drills are specifically for high speed machining in hardened tool steels up to 63HRC.


Product Specifications
Usable Length (mm)6mm
Max Depth of Cut (mm)3mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.0591"
Overall Length (Inch)1.9685"
Material CodeHM
Radial Rake Angle-10
No of Flute2
Flute Helix Angle30
Corner Radius (mm)0.75mm
CoatingTiSiN
Surface ColorRose Gold
