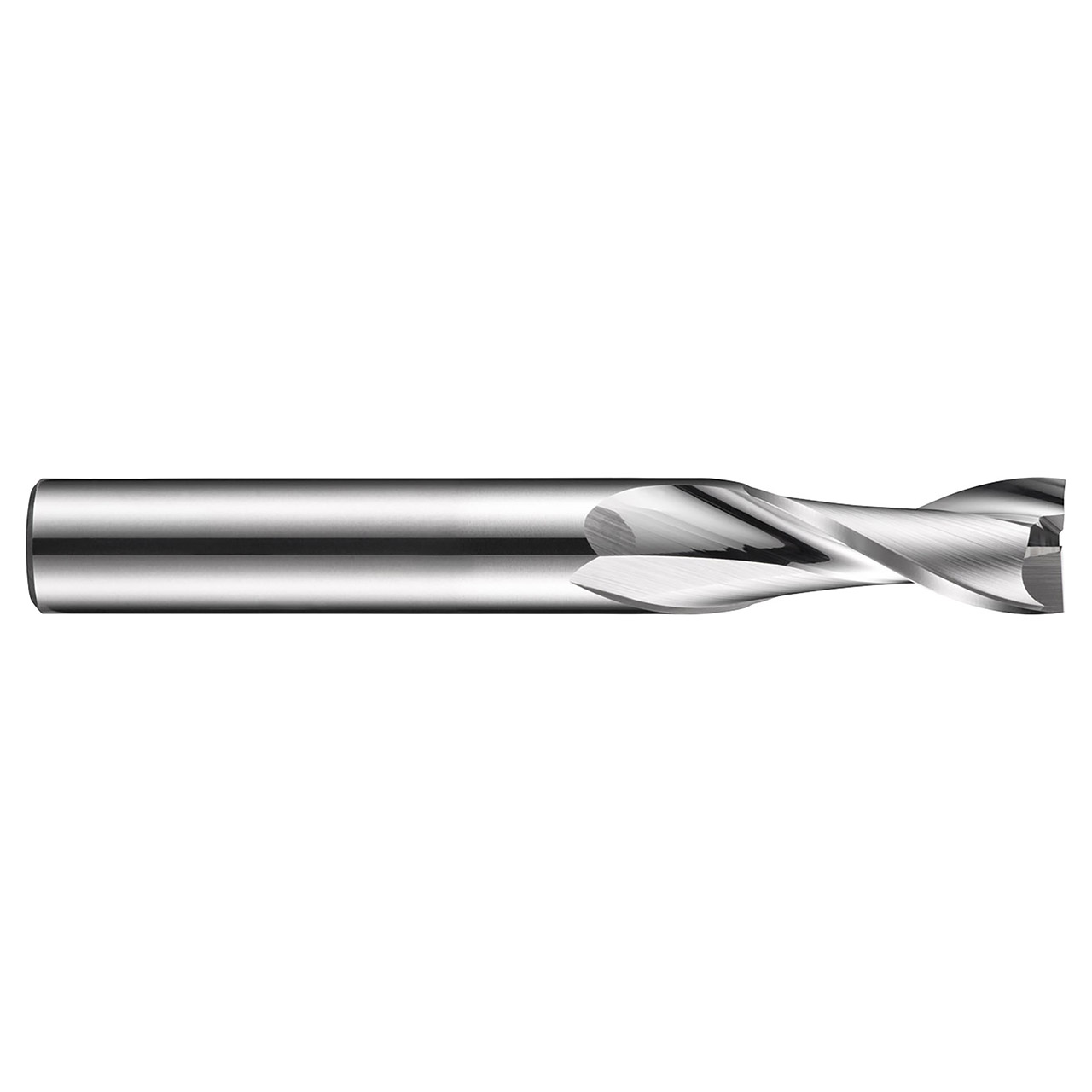

Short series End mill with 2 flutes, diameter 2mm with 6.5mm length of cut, 40mm overall length and 0.1mm corner radius, according to DORMER standard with a 4mm plain shank, solid carbide with polished finish, 30 Degree helix and 20 Degree rake angle for shoulder milling, slot milling and ramping in non-ferrous metals.
| Max Depth of Cut (mm) | 6.5mm |
| Connection Diameter (Inch) | 0.1575" |
| Cutting Diameter (Inch) | 0.0787" |
| Overall Length (Inch) | 1.5748" |
| Material Code | HM |
| Radial Rake Angle | 20 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 0.1mm |
| Coating | Polished |
| Surface Color | Chrome |
| Country of origin | Malaysia |
