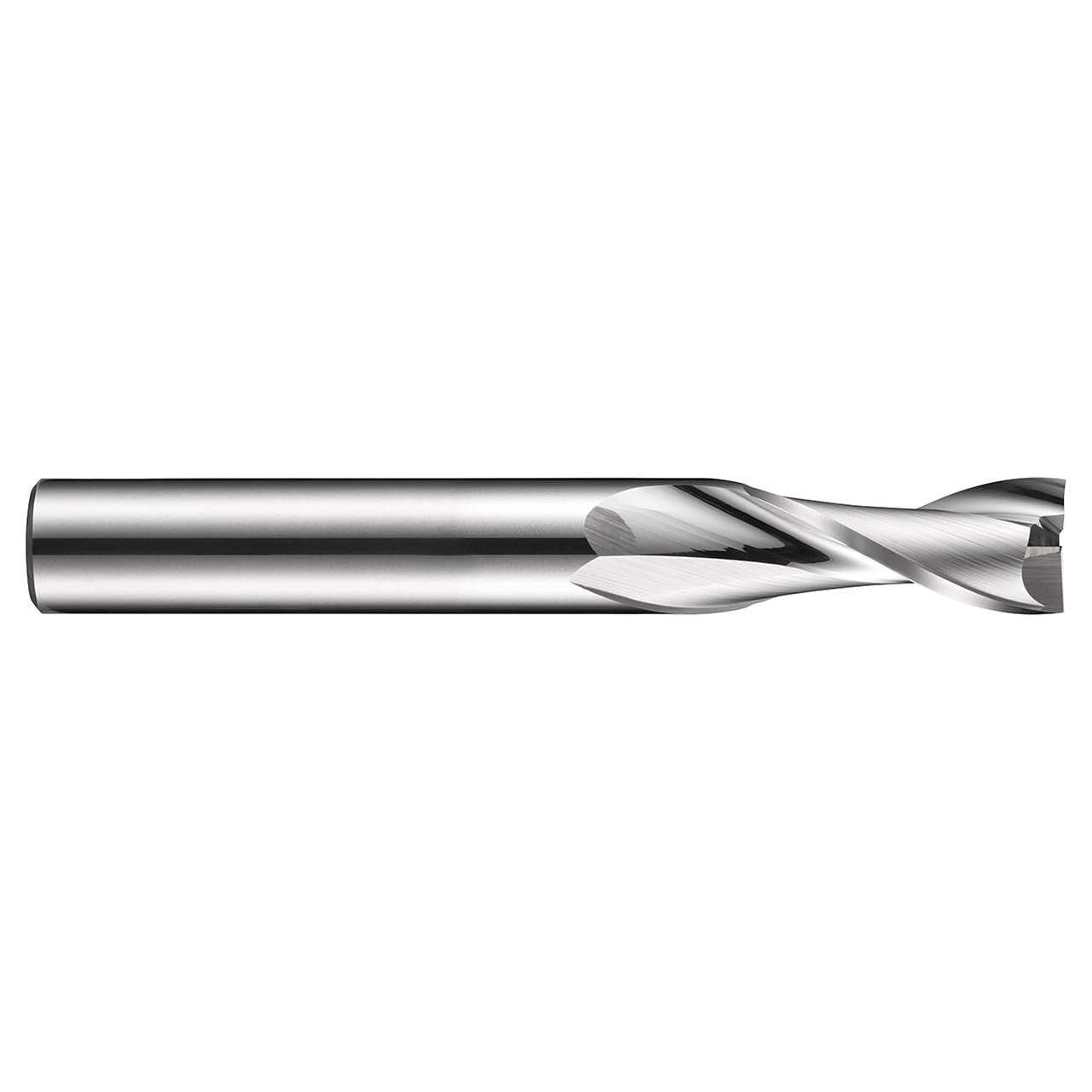

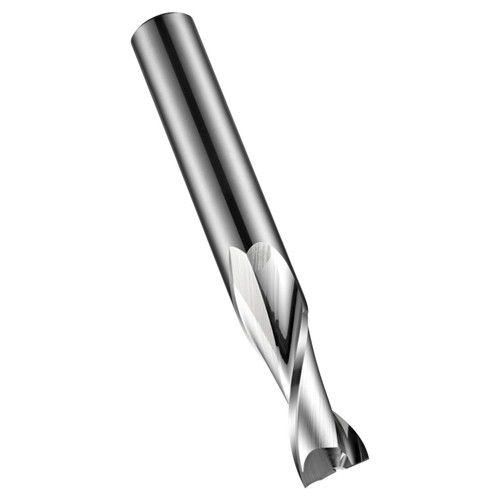

S610 2-flute slot drills have a bright polished finish which stops workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate finish, whilst the premium carbide used in manufacture ensures you get great performance and a long tool life. The tools have a medium length flute design which will provide high rigidity for milling standard slots and profiling. S610 2-flute carbide slot drills are application products, specifically for milling in non-ferrous materials such as aluminium, and have a high hook geometry for high performance machining in soft materials.
Max Depth of Cut (mm) | 20mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.2362" |
Overall Length (Inch) | 1.9685" |
Material Code | HM |
Radial Rake Angle | 20 |
No of Flute | 2 |
Flute Helix Angle | 30 |
Corner Radius (mm) | 0.1mm |
Coating | Polished |
Surface Color | Chrome |
