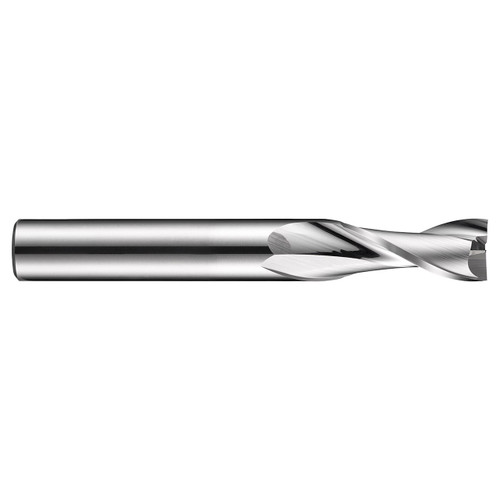

Short series End mill with 2 flutes, diameter 3mm with 9mm length of cut, 40mm overall length, 15mm reach with neck relief and 0.1mm corner radius, according to DORMER standard with a 3mm plain shank, solid carbide with polished finish, 30 Degree helix and 20 Degree rake angle for shoulder milling, slot milling, ramping and helical milling in non-ferrous metals.
Product Specifications
| Usable Length (mm) | 15mm |
| Max Depth of Cut (mm) | 9mm |
| Connection Diameter (Inch) | 0.1181" |
| Cutting Diameter (Inch) | 0.1181" |
| Overall Length (Inch) | 1.5748" |
| Material Code | HM |
| Radial Rake Angle | 20 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 0.1mm |
| Coating | Polished |
| Surface Color | Chrome |
| Country of origin | Malaysia |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
interval quantity:
1
