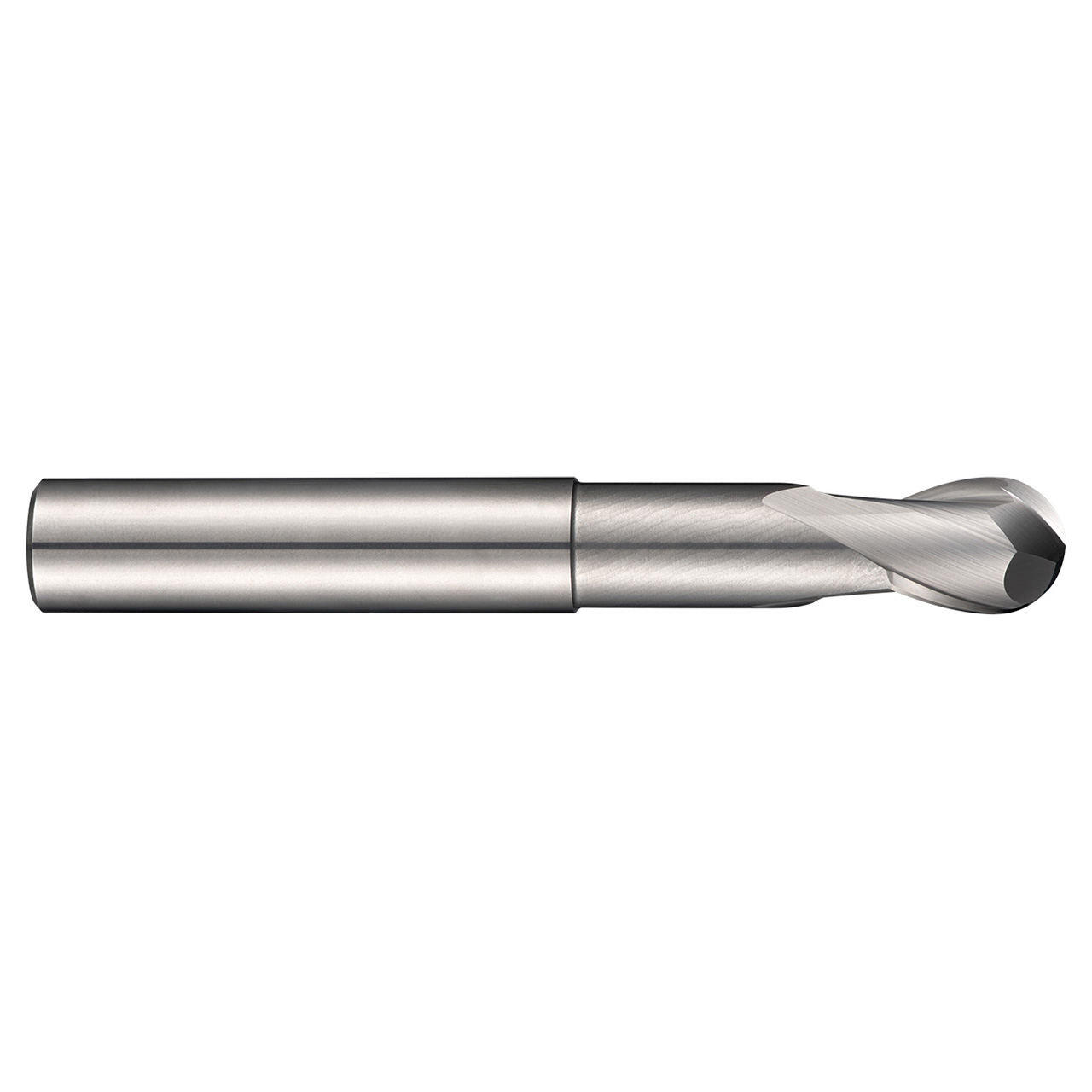

Extra short series Ball-nose end mill with 2 flutes, diameter 1mm with 0.8mm length of cut, 50mm overall length, 10mm reach with neck relief and 0.5mm full profile radius, according to DORMER standard with a 4mm plain shank, solid carbide with bright finish, 30 Degree helix and 11 Degree rake angle for copy milling in non-ferrous metals.
Product Specifications
| Usable Length (mm) | 10mm |
| Max Depth of Cut (mm) | 0.8mm |
| Connection Diameter (Inch) | 0.1575" |
| Cutting Diameter (Inch) | 0.0394" |
| Overall Length (Inch) | 1.9685" |
| Material Code | HM |
| Radial Rake Angle | 11 |
| No of Flute | 2 |
| Flute Helix Angle | 30 |
| Corner Radius (mm) | 0.5mm |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Malaysia |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
interval quantity:
1
