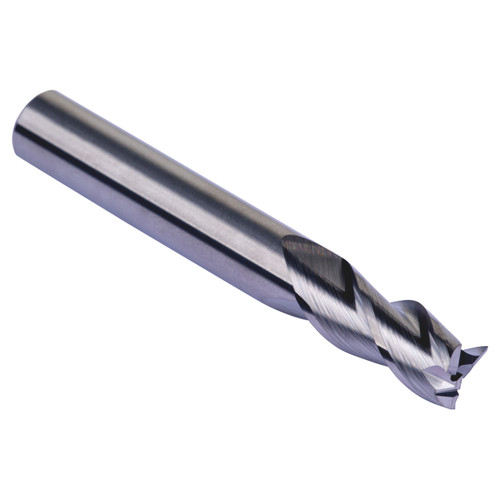

Dormer S65016.0 | 0.6299" Diameter x 3.5433" OAL 3 Flute Bright Coated Square End Mill

$164.40
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25211927
Weight:
8.04 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

With a bright finish to reduce friction and prevent workpiece material from sticking to the cutting edges of the tool, a cleaner and more accurate finish will be achieved with S650 3-flute milling cutters. They have a differential pitch to reduce chatter and vibration for better tool life and improved surface finish, and positive geometry, giving you a smooth cutting action for high performance when milling non-ferrous materials. For improved metal removal rate at higher cutting speeds, S650 milling cutters have a 3-flute design which is very versatile and is capable of slotting, plunging, ramping and contouring.


Product Specifications
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.6299"
Cutting Diameter (Inch)0.6299"
Overall Length (Inch)3.5433"
Material CodeHM
Radial Rake Angle13
No of Flute3
Flute Helix Angle40
CoatingBright
Surface ColorBright Silver
